Components [07/2015 - ]: Illustration

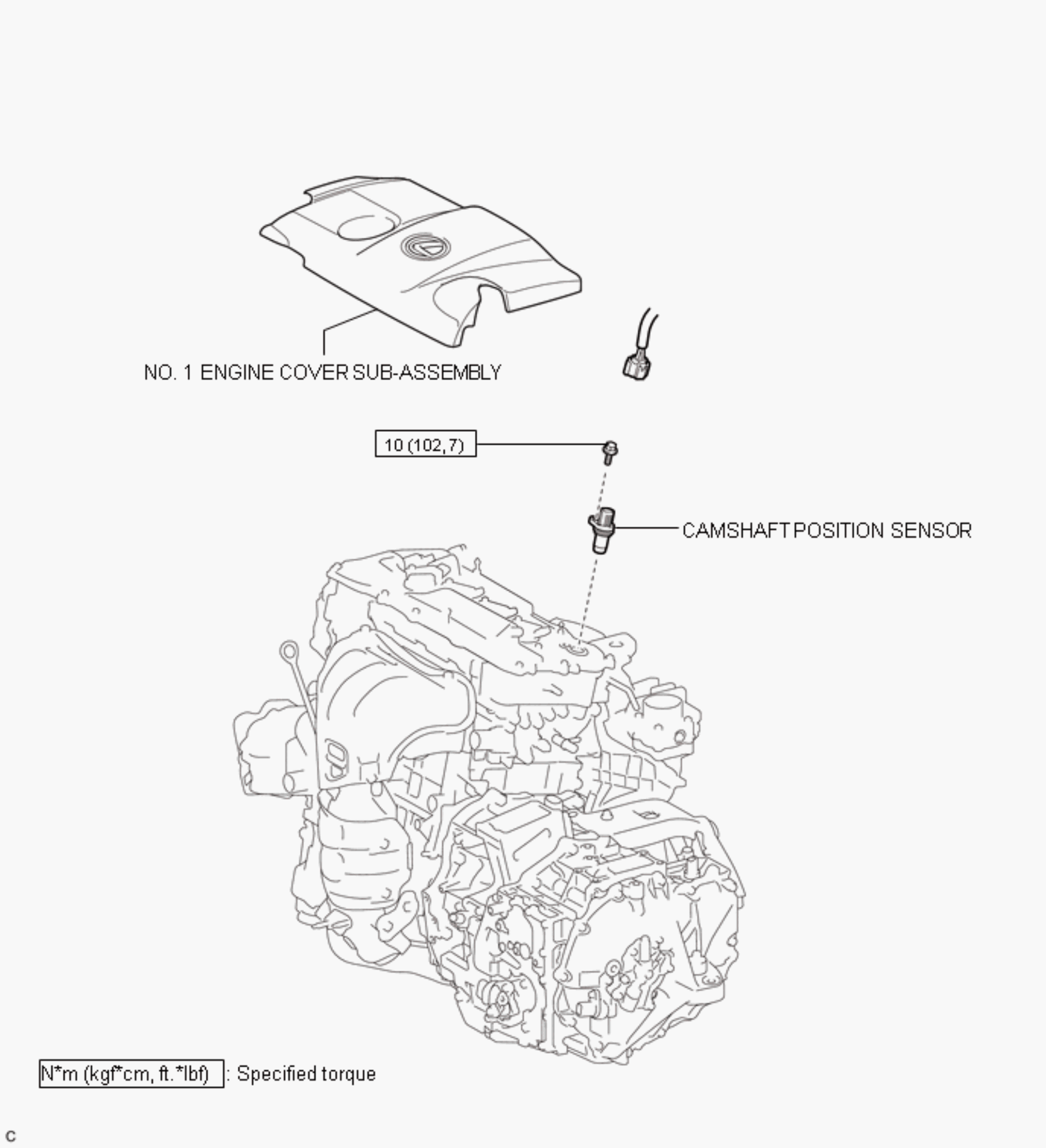

Fig 1: Camshaft Position Sensor Components

GTY647221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
