Home >> Lexus >> 2017 >> CT 200h Base >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Pre-Collision System - Diagnostics - Introduction >> Pre-Collision System >> Parts Location [08/2014 - ] >> Illustration

Parts Location [08/2014 - ]: Illustration

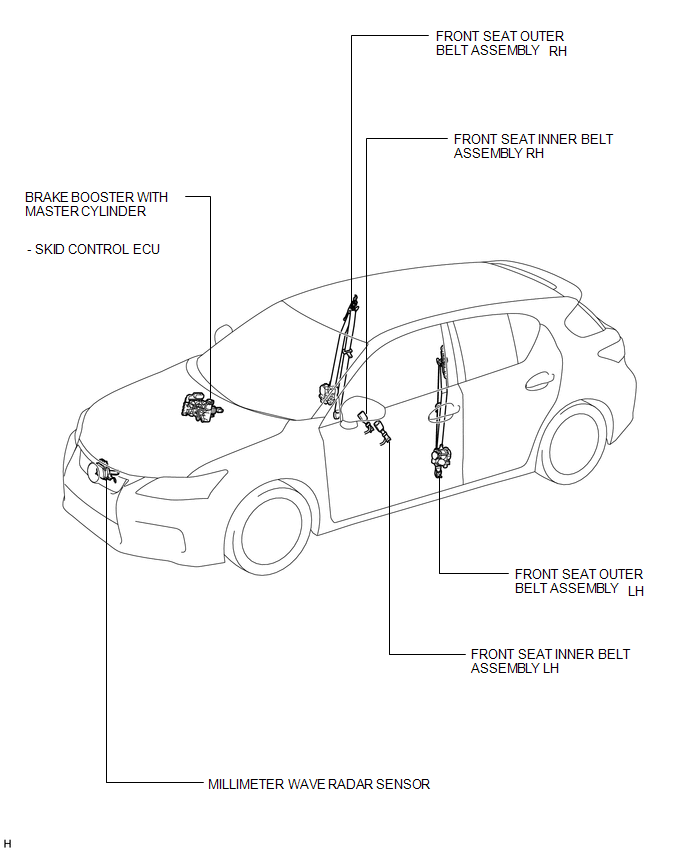

Fig 1: Pre-Collision System Components Location (1 Of 2)
GTY353884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

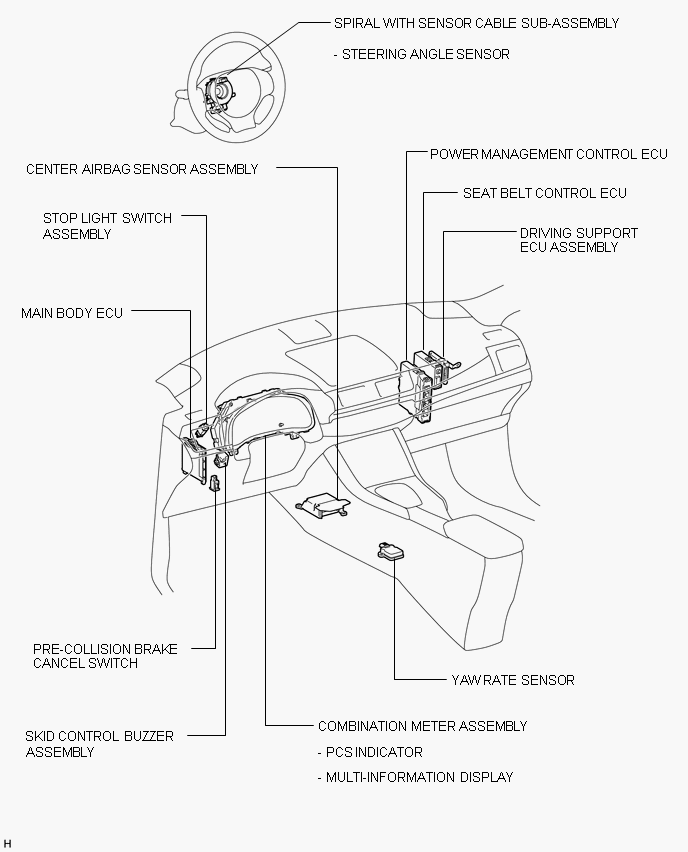

Fig 1: Pre-Collision System Components Location (2 Of 2)
GTY353026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
