Installation [08/2014 - ]: Procedure

  1. INSTALL SERVICE PLUG GRIP
    WARNING:

    Wear insulated gloves.

    NOTE:

    Before connecting the service plug, check that no parts and tools remain and that the high voltage terminals and connectors are connected securely.

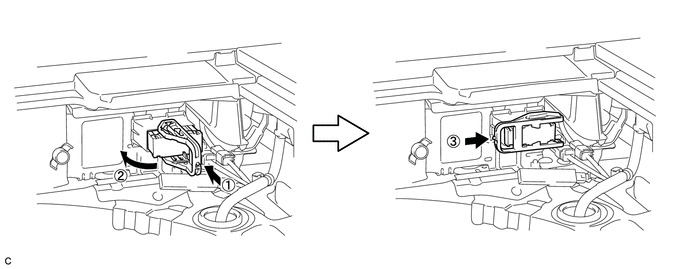

    1. Wear insulated gloves and install the service plug grip in the order shown in the illustration.
      GTY357958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Rotate the handle of the service plug grip 90° toward the battery and slide it in the direction shown by the arrow until a click sound is heard.
  2. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See article. Refer to INITIALIZATION [08/2014 - 08/2015] Refer to INITIALIZATION [08/2015 - ] ).

  3. INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE

    Refer to PROCEDURE - Step 69

  4. INSTALL DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 70

  5. INSTALL REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 71

  6. INSTALL REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 72

  7. INSTALL REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 73
