Disassembly [08/2014 - ]: Procedure

  1. REMOVE INVERTER CURRENT SENSOR SUB-ASSEMBLY

    HINT:

    The number of clamps used to engage the wire harnesses of the inverter current sensor sub-assembly varies depending on the part number of the inverter with converter assembly. Confirm the part number before performing work.

    GTY671129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A For inverter with converter assembly with part number G9200-76010 or G9200-76011 *B For inverter with converter assembly with part number other than G9200-76010 or G9200-76011
    1. Apply protective tape to the inverter terminal with sensor sub-assembly as shown in the illustration.
      NOTE:

      Use non-residue type tape.

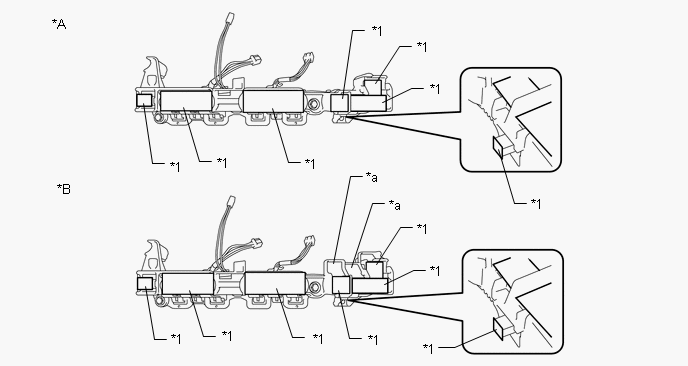

      GTY641617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type 1 *B Type 2
      *1 Protective Tape - -
      *a Terminal Tray - -
    2. Disengage the 2 wire harnesses of the inverter current sensor sub-assembly from each clamp as shown in the illustration.

      HINT:

      The number of clamps used to engage the wire harness varies depending on the type of inverter with converter assembly. Confirm the type before performing work.

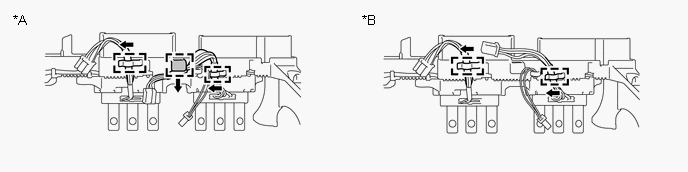

      GTY671129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A For inverter with converter assembly with part number G9200-76010 or G9200-76011 *B For inverter with converter assembly with part number other than G9200-76010 or G9200-76011
    3. Remove the 2 bolts and inverter current sensor sub-assembly.
      NOTE:

      Do not touch the bus-bars.

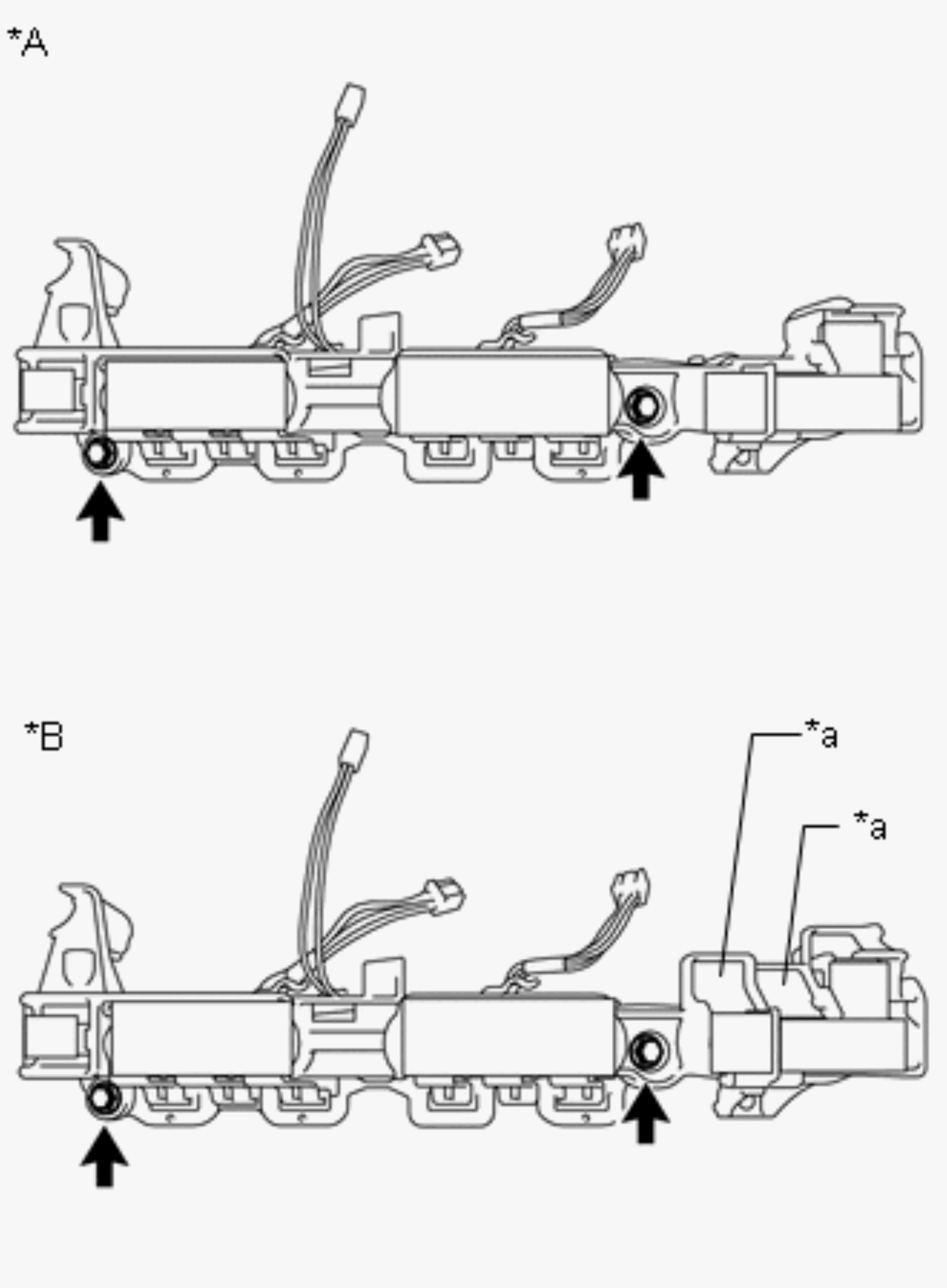

      GTY645378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type 1
      *B Type 2
      *a Terminal Tray
  2. REMOVE INVERTER WIRE SUB-ASSEMBLY
    1. Disengage the wire harness of the inverter wire sub-assembly from each clamp as shown in the illustration.
      NOTE:

      Do not pull the wire harness excessively.

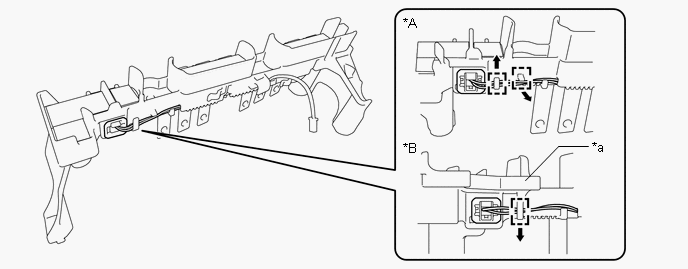

      GTY640686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type 1 *B Type 2
      *a Terminal Tray - -

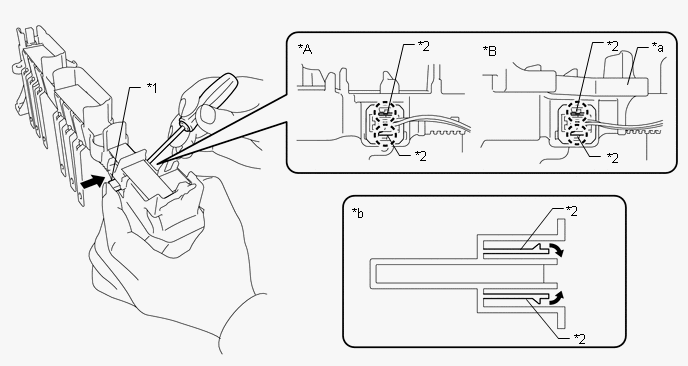

    2. Using a screwdriver, disengage the 2 claws while lightly pushing in the protruding part of the interlock connector (A) as shown in the illustration to disconnect it.
      GTY651491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type 1 *B Type 2
      *1 Inter Lock Connector A *2 Craw
      *a Terminal Tray *b Cross Section (Inter Lock Connector A)
    3. Disengage the wire harness of the inverter wire sub-assembly from the 6 clamps.

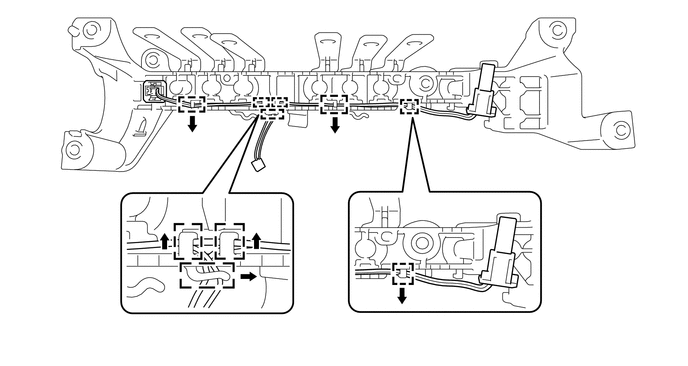

      GTY479755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, disengage the 2 claws while lightly pushing in the protruding part of the interlock connector (B) as shown in the illustration to disconnect it and remove the inverter wire sub-assembly.

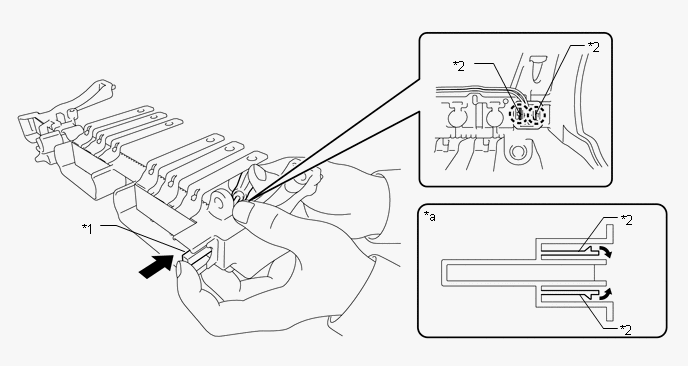

      GTY627870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Inter Lock Connector B *2 Craw
      *a Cross Section (Inter Lock Connector B) - -
