Installation [08/2014 - ]: Procedure

  1. INSTALL FRAME WIRE
    WARNING:

    Wear insulated gloves.

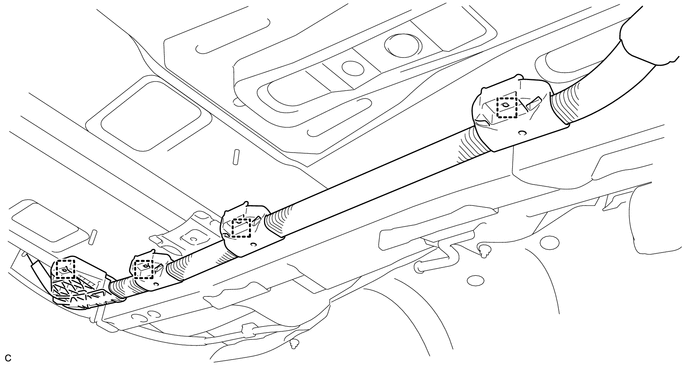

    1. Install the frame wire with 4 new clamps.
      GTY359408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

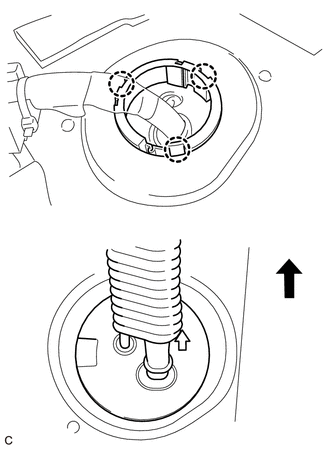

    2. Insert the frame wire into the floor panel hole and engage the 3 claws.
      GTY458296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      Front Side

      HINT:

      The arrow should be pointing toward the front of the vehicle.

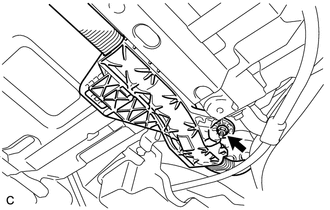

    3. Install the nut.
      GTY356754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)

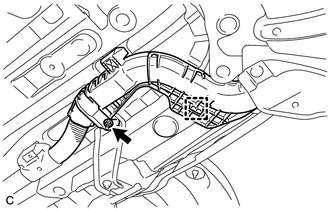

    4. Engage the clamp.
      GTY356753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the nut.

      Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)

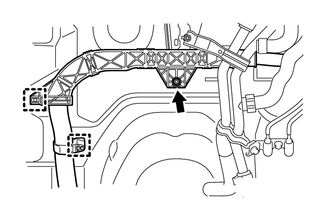

    6. Engage the 2 clamps.
      GTY337560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Install the nut.

      Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)

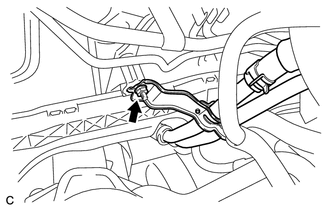

    8. Install the heater water pipe sub-assembly with the nut.
      GTY336396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

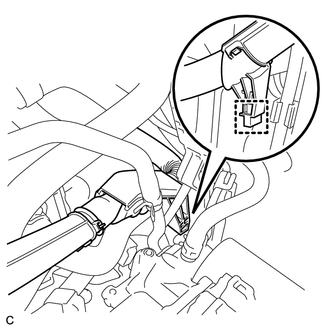

    9. Engage the clamp.
      GTY325467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

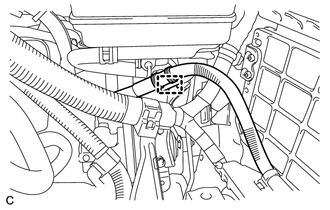

    10. Engage the clamp.
      GTY357972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

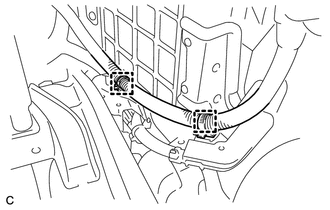

    11. Engage the 2 clamps.
      GTY339911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

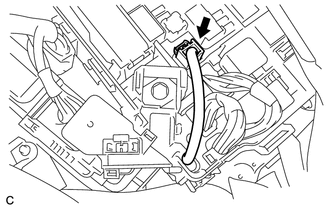

    12. Connect the engine room junction block assembly connector.
      GTY266850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

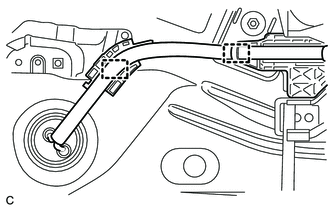

    13. Engage the 2 clamps.
      GTY356651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

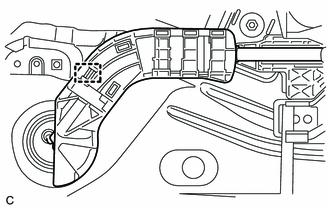

    14. Engage the clamp to install the wire harness protector to the floor panel.
      GTY356649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INVERTER RESERVE TANK ASSEMBLY

    Refer to PROCEDURE - Step 54

  3. CONNECT HYBRID BATTERY JUNCTION BLOCK ASSEMBLY
    WARNING:

    Wear insulated gloves.

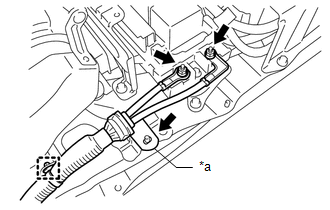

    1. Connect the frame wire to the hybrid battery junction block assembly with the 2 nuts.
      GTY537445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Earth Terminal

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

      NOTE:
      • Make sure that the ends of the frame wire are not crossed over each other.
      • Be sure to connect the ends of the frame wire to the connect terminals.
    2. Connect the earth terminal.
    3. Engage the clamp.
  4. CHECK HIGH VOLTAGE CABLE CONNECTION

    See step  15

  5. CONNECT CABLE TO POSITIVE AUXILIARY BATTERY TERMINAL

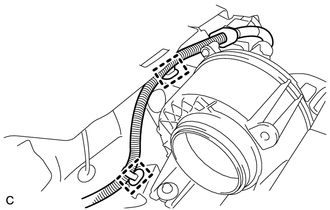

    1. Engage the 2 clamps.
      GTY356769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

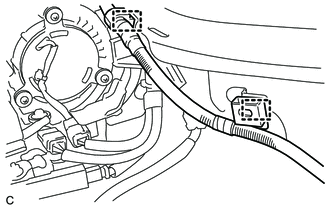

    2. Engage the 2 clamps.
      GTY356659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

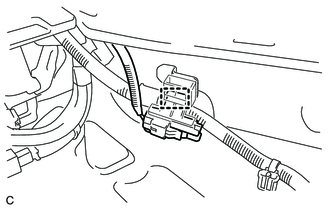

    3. Connect the clamp.
      GTY356653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

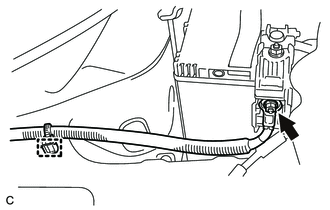

    4. Connect the frame wire to the auxiliary battery terminal with the nut.
      GTY356661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

    5. Engage the clamp.
    6. Install the terminal cover.
  6. INSTALL UPPER HYBRID BATTERY COVER SUB-ASSEMBLY

    See step  16

  7. INSTALL NO. 1 HYBRID BATTERY EXHAUST DUCT

    See step  17

  8. INSTALL NO. 1 HYBRID BATTERY INTAKE DUCT

    See step  19

  9. INSTALL REAR FLOOR BOARD SPACER

    See step  20

  10. INSTALL HV BATTERY SHIELD SHEET

    See step  22

  11. INSTALL REAR NO. 1 FLOOR BOARD

    Refer to PROCEDURE - Step 58

  12. INSTALL REAR NO. 2 FLOOR BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 59

  13. INSTALL REAR NO. 1 FLOOR BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 60

  14. INSTALL REAR SEAT SIDE GARNISH RH

    HINT:

    Use the same procedure described for the LH side (See article. Refer to PROCEDURE - Step 23 ).

  15. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure described for the LH side (See article. Refer to PROCEDURE - Step 39 ).

  16. INSTALL REAR SEATBACK ASSEMBLY RH

    (See article. Refer to INSTALLATION [08/2014 - ] ).

  17. INSTALL FRONT SUSPENSION MEMBER BRACE REAR RH

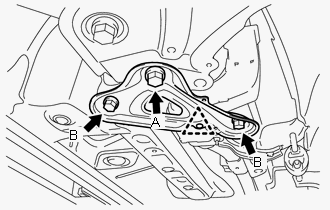

    1. Install the front suspension member brace rear RH with a new bolt (A) and the 2 bolts (B).
      GTY528840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Bolt (A)

      Torque: 137 N*m (1397 kgf*cm, 101 ft.*lbf)

      Bolt (B)

      Torque: 93 N*m (948 kgf*cm, 69 ft.*lbf)

    2. Install the clip.
  18. INSTALL FRONT CENTER FLOOR COVER RH (w/ Cover)
    1. Engage the 3 clips to install the front center floor cover RH.
  19. INSTALL FRONT FLOOR COVER RH (w/ Cover)

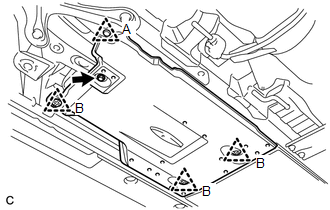

    1. Engage the 3 clips (B) to install the front floor cover RH.
      GTY537296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the clip (A) and bolt.
  20. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR
    1. Install the No. 1 front floor heat insulator with the 3 nuts.

      Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

  21. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    (See article. Refer to REMOVAL [08/2014 - ] .).

  22. INSTALL INVERTER WITH CONVERTER ASSEMBLY

    (See article. Refer to INSTALLATION [08/2014 - ] .).

  23. INSTALL DECK FLOOR BOX LH (w/o Woofer)

    Refer to PROCEDURE - Step 62

  24. INSTALL REAR NO. 4 FLOOR BOARD (w/ Woofer)

    Refer to PROCEDURE - Step 64

  25. INSTALL REAR NO. 4 FLOOR BOARD (w/o Woofer)

    Refer to PROCEDURE - Step 63

  26. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 61

  27. INSTALL SERVICE PLUG GRIP

    (See article. Refer to INSTALLATION [08/2014 - ] ).
