Removal [08/2014 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notice before proceeding with work (See article. Refer to PRECAUTION [08/2014 - ] ).

  2. REMOVE REAR NO. 2 FLOOR BOARD

    Refer to PROCEDURE - Step 1

  3. REMOVE REAR DECK FLOOR BOX

    Refer to PROCEDURE - Step 2

  4. REMOVE REAR NO. 3 FLOOR BOARD

    Refer to PROCEDURE - Step 3

  5. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 4

  6. REMOVE REAR FLOOR BOARD UPPER NO. 3 PLATE

    Refer to PROCEDURE - Step 5

  7. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See article. Refer to INITIALIZATION [08/2014 - 08/2015] Refer to INITIALIZATION [08/2015 - ] ).

  8. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 1

  9. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 11

  10. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH

    Refer to PROCEDURE - Step 10

  11. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 12

  12. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  13. REMOVE COMBINATION SWITCH ASSEMBLY
    1. Disengage the 6 claws and 2 guides.

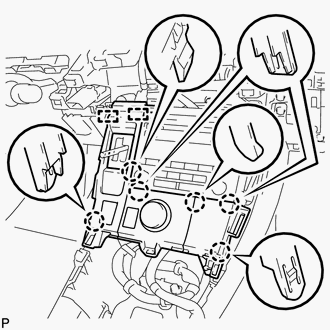

      GTY529286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Disconnect each connector and remove the combination switch assembly.
    4. Remove the 2 screws and position indicator housing assembly from the combination switch assembly.

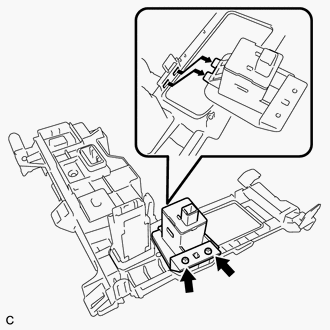

      GTY349373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the 2 claws and remove the transmission shift main switch.

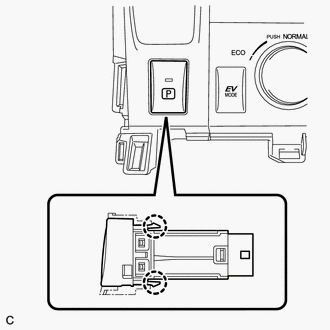

      GTY353169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
