Installation [08/2014 - ]: Procedure

INSTALL COMBINATION SWITCH ASSEMBLY

Put the 2 guides in position.

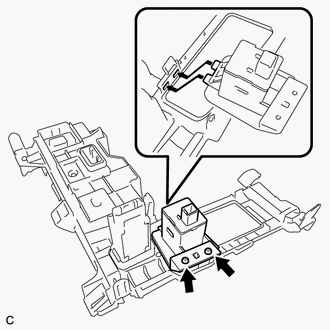

Install the position indicator housing assembly to the combination switch assembly with the 2 screws.
Torque: 0.8 N*m (8 kgf*cm, 7 in.*lbf)
Connect each connector.
Engage the clamp.
Engage the 2 guides and 6 claws to install the combination switch assembly.

INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
Refer to PROCEDURE - Step 18
INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 22
INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH
Refer to PROCEDURE - Step 24
INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH
Refer to PROCEDURE - Step 23
INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL
Refer to PROCEDURE - Step 7
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See article. Refer to INITIALIZATION [08/2014 - 08/2015] Refer to INITIALIZATION [08/2015 - ] ).
INSTALL REAR FLOOR BOARD UPPER NO. 3 PLATE
Refer to PROCEDURE - Step 69
INSTALL DECK FLOOR BOX RH
Refer to PROCEDURE - Step 70
INSTALL REAR NO. 3 FLOOR BOARD
Refer to PROCEDURE - Step 71
INSTALL REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 72
INSTALL REAR NO. 2 FLOOR BOARD
Refer to PROCEDURE - Step 73
