Removal [08/2014 - ]: Procedure

  1. REMOVE HYBRID BATTERY JUNCTION BLOCK ASSEMBLY

    (See article. Refer to REMOVAL [08/2014 - ] )

  2. REMOVE BATTERY SMART UNIT
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Disconnect the 3 connectors.

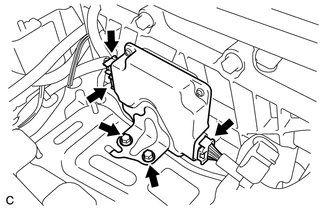

      GTY343233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and battery smart unit.
