Removal [08/2014 - ]: Procedure

  1. REMOVE FUEL SUCTION TUBE ASSEMBLY WITH PUMP AND GAUGE

    (See article. Refer to REMOVAL [08/2014 - 06/2016] Refer to REMOVAL [06/2016 - ] )

  2. REMOVE FUEL SENDER GAUGE ASSEMBLY

    See step  2

  3. REMOVE FUEL PUMP

    See step  2

  4. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
    1. Using a screwdriver with its tip wrapped in protective tape, remove the fuel pressure regulator assembly.

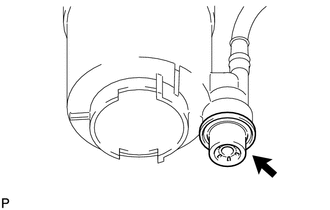

      GTY237410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Slowly pull out the fuel pressure regulator assembly because the O-ring is firmly installed between the regulator and the fuel filter.

    2. Remove the 2 O-rings from the pressure regulator assembly.

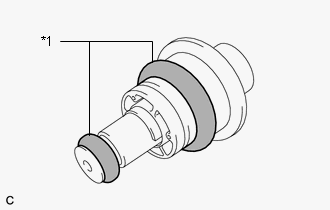

      GTY313118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 O-ring
