Removal [08/2014 - ]: Procedure

  1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Refer to PROCEDURE - Step 10

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

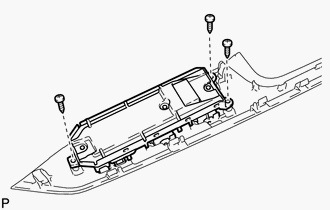

    1. Remove the 3 screws and multiplex network master switch assembly.
      GTY355628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
