Removal [08/2014 - ]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    (See article. Refer to REMOVAL [08/2014 - ] )

  2. REMOVE CRUISE CONTROL SWITCH

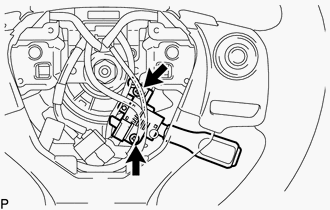

    1. Remove the 2 screws.
      GTY461538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

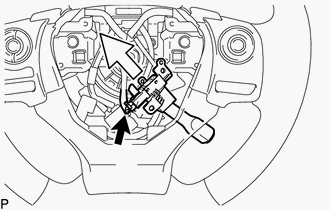

    2. Disconnect the connector and remove the cruise control switch.
      GTY461539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
