Installation [08/2014 - ]: Procedure

  1. INSTALL CRUISE CONTROL SWITCH
    1. Connect the connector.

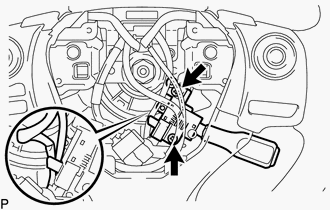

    2. Install the cruise control switch with the 2 screws shown in the illustration.
      GTY461541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)

  2. INSTALL HORN BUTTON ASSEMBLY

    (See article. Refer to INSTALLATION [08/2014 - ] )
