Inspection [08/2014 - ]: Procedure

  1. INSPECT CRUISE CONTROL SWITCH
    1. for cruise control system:
      1. Measure the resistance according to the value(s) in the table below.

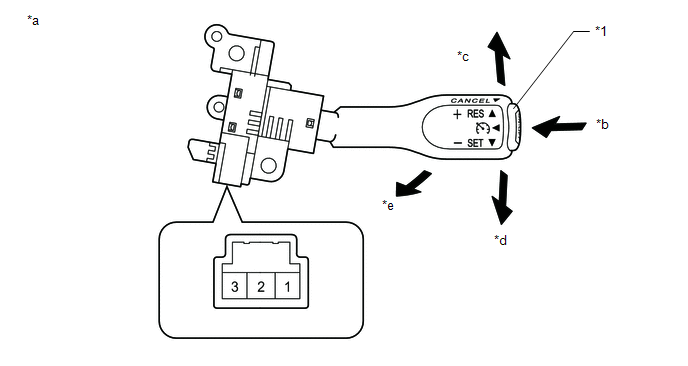

        GTY537382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        1 - 3 Main Switch off 1 MΩ or higher
        Main Switch on Below 2.5 Ω
        +/RES 235 to 245 Ω
        -/SET 617 to 643 Ω
        CANCEL 1509 to 1571 Ω
        TEXT IN ILLUSTRATION

        *1 Cruise Control Switch (ON-OFF button) - -
        *a Component without harness connected
        (Cruise Control Switch)        		 *b ON-OFF
        *c +/RES *d -/SET
        *e CANCEL - -
    2. for dynamic radar cruise control system:
      1. Measure the resistance according to the value(s) in the table below.

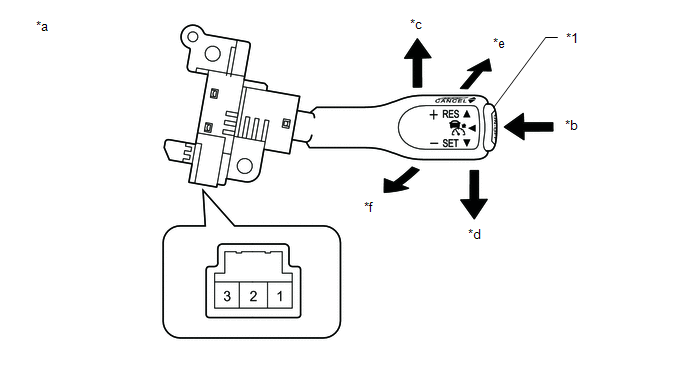

        GTY524908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        TEXT IN ILLUSTRATION

        *1 Cruise Control Switch (ON-OFF button) - -
        *a Component without harness connected
        (Cruise Control Switch)        		 *b ON-OFF
        *c +/RES *d -/SET
        *e MODE *f CANCEL

        Standard Resistance

        Tester Connection Switch Condition Specified Condition
        1 - 2
        1 - 3        		 Main Switch off 1 MΩ or higher
        1 - 3 Main switch on Below 2.5 Ω
        1 - 2 MODE Below 2.5 Ω
        1 - 3 +/RES 235 to 245 Ω
        1 - 3 -/SET 617 to 643 Ω
        1 - 3 CANCEL 1509 to 1571 Ω

        If the result is not as specified, replace the cruise control switch.
