Components [09/2015 - ]
| Callout | Description | Callout | Description |

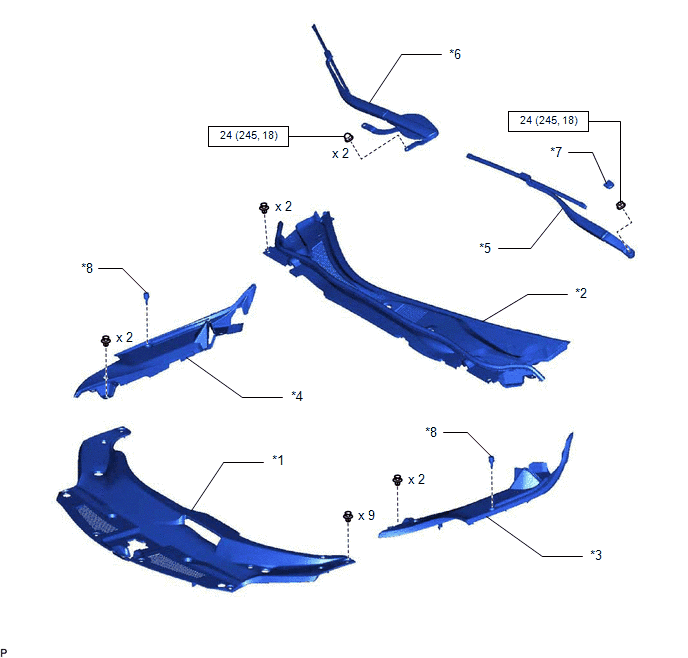

| *1 | COOL AIR INTAKE DUCT SEAL | *2 | COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY |
| *3 | FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH | *4 | FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP RH |
| *5 | FRONT WIPER ARM AND BLADE ASSEMBLY LH | *6 | FRONT WIPER ARM AND BLADE ASSEMBLY RH |
| *7 | FRONT WIPER ARM HEAD CAP | *8 | CENTER HOOD CUSHION |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

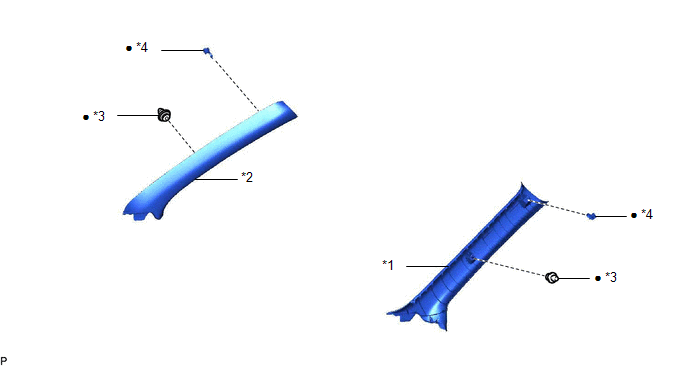

| *1 | FRONT PILLAR GARNISH LH | *2 | FRONT PILLAR GARNISH RH |
| *3 | CLIP | *4 | FRONT PILLAR GARNISH CLIP |
| • | Non-reusable part | - | - |

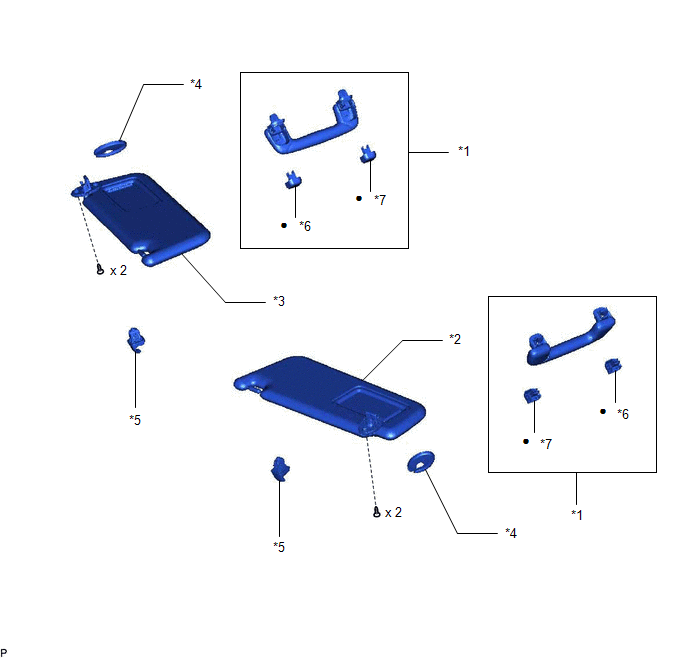

| *1 | ASSIST GRIP ASSEMBLY | *2 | VISOR ASSEMBLY LH |
| *3 | VISOR ASSEMBLY RH | *4 | VISOR BRACKET COVER |
| *5 | VISOR HOLDER | *6 | ASSIST GRIP COVER LH |
| *7 | ASSIST GRIP COVER RH | - | - |
| • | Non-reusable part | - | - |

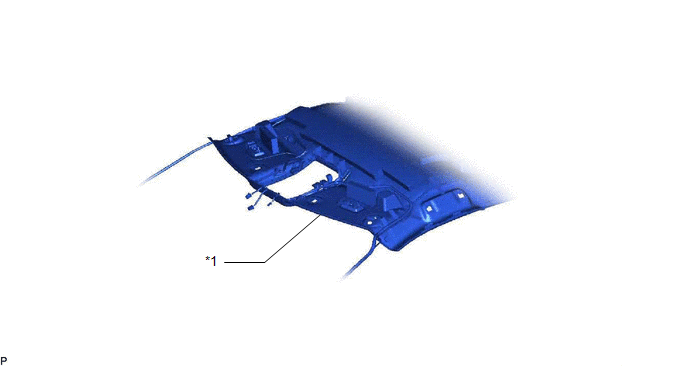

| *1 | ROOF HEADLINING ASSEMBLY | - | - |
| *A | for 1-piece Type | *B | for 2-piece Type |

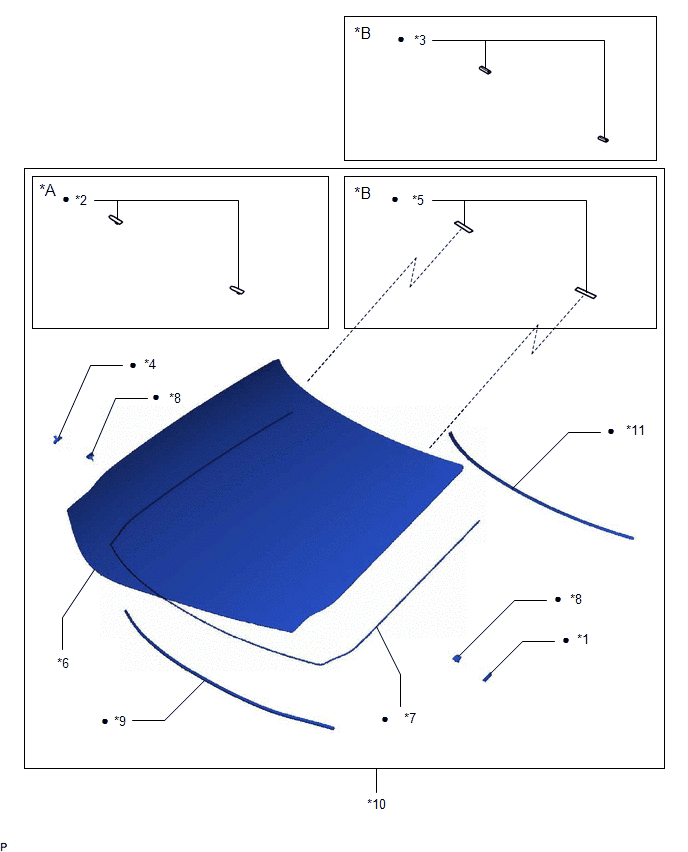

| *1 | NO. 1 WINDSHIELD GLASS SPACER | *2 | NO. 1 WINDSHIELD GLASS STOPPER |
| *3 | NO. 1 WINDSHIELD GLASS STOPPER | *4 | NO. 2 WINDSHIELD GLASS SPACER |
| *5 | NO. 2 WINDSHIELD GLASS STOPPER | *6 | WINDSHIELD GLASS |
| *7 | WINDSHIELD GLASS ADHESIVE DAM | *8 | WINDSHIELD GLASS RETAINER |
| *9 | WINDSHIELD GLASS SEAL | *10 | WINDSHIELD GLASS SUB-ASSEMBLY |
| *11 | WINDSHIELD OUTSIDE MOULDING | - | - |
| • | Non-reusable part | - | - |
