Inspection [09/2015 - ]: Procedure

  1. INSPECT ENGINE OIL LEVEL SENSOR

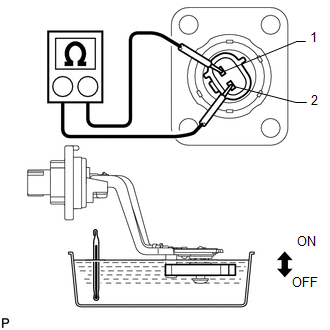

    GTY666724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Partially immerse the sensor in an oil bath and warm up the oil bath.
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      1 - 2 ON, 20°C (68°F) Below 1 Ω
      OFF, 20°C (68°F)
      ON, 60°C (140°F)
      OFF, 60°C (140°F) 10 kΩ or higher

      If the result is not as specified, replace the sensor.
