Removal [09/2015 - ]: Procedure

  1. REMOVE INTAKE AIR CONNECTOR PIPE

    (Refer to REMOVAL [09/2015 - ] )

  2. REMOVE CAM TIMING CONTROL WITH EDU MOTOR ASSEMBLY RH

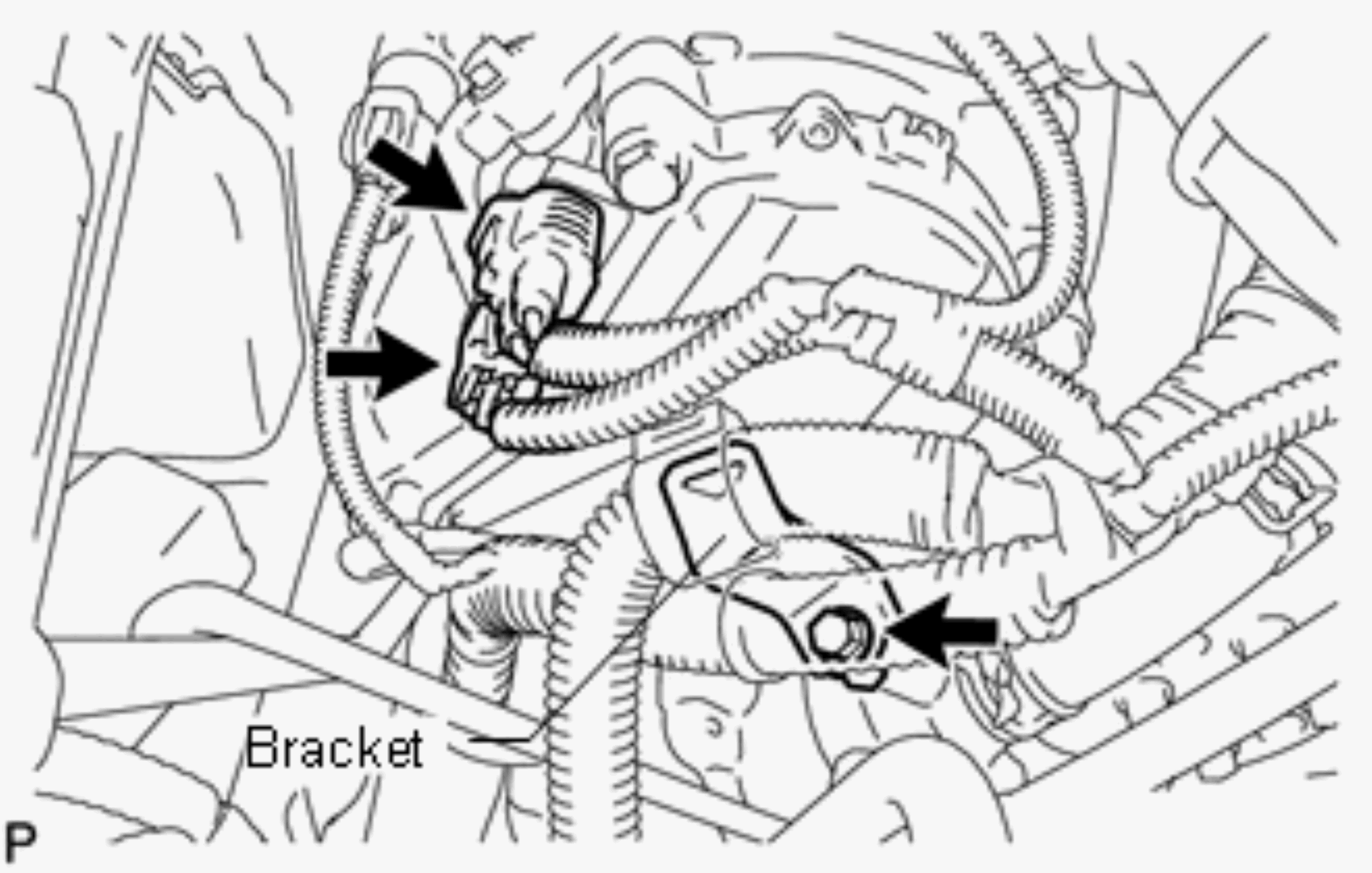

    GTY679519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 2 cam timing control with EDU motor assembly RH connectors.
    2. Remove the bolt and bracket.
    3. Remove the 3 bolts and cam timing control with EDU motor assembly RH.
      NOTE:

      Do not allow foreign matter to contact the oil seal face of the cam timing control with EDU motor assembly RH (connecting surface with timing chain cover).

      GTY105126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the O-ring from the timing chain cover.
  3. REMOVE CAM TIMING CONTROL WITH EDU MOTOR ASSEMBLY LH

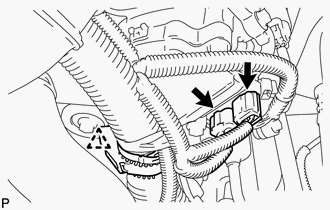

    GTY635330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the 2 cam timing control with EDU motor assembly LH connectors and wire harness clamp.
    2. Remove the 3 bolts and cam timing control with EDU motor assembly LH.
      NOTE:

      Do not allow foreign matter to contact the oil seal face of the cam timing control with EDU motor assembly LH (connecting surface with timing chain cover).

      GTY105128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the timing chain cover.
