Components [09/2015 - ]: Illustration

Fig 1: Front Speed Sensor Replacement Components W/ Torque Specifications (1 Of 2)
GTY626205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

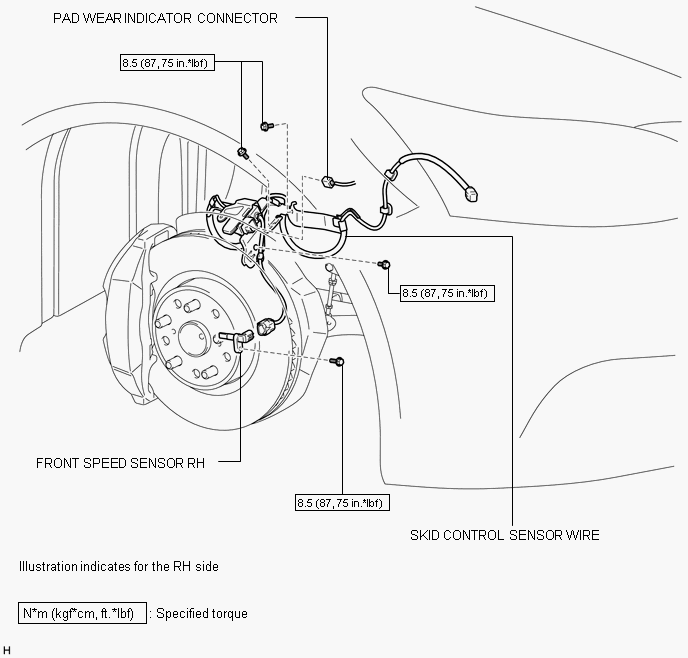

Fig 1: Front Speed Sensor Replacement Components W/ Torque Specifications (2 Of 2)
GTY685658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
