Components [09/2015 - ]: Illustration

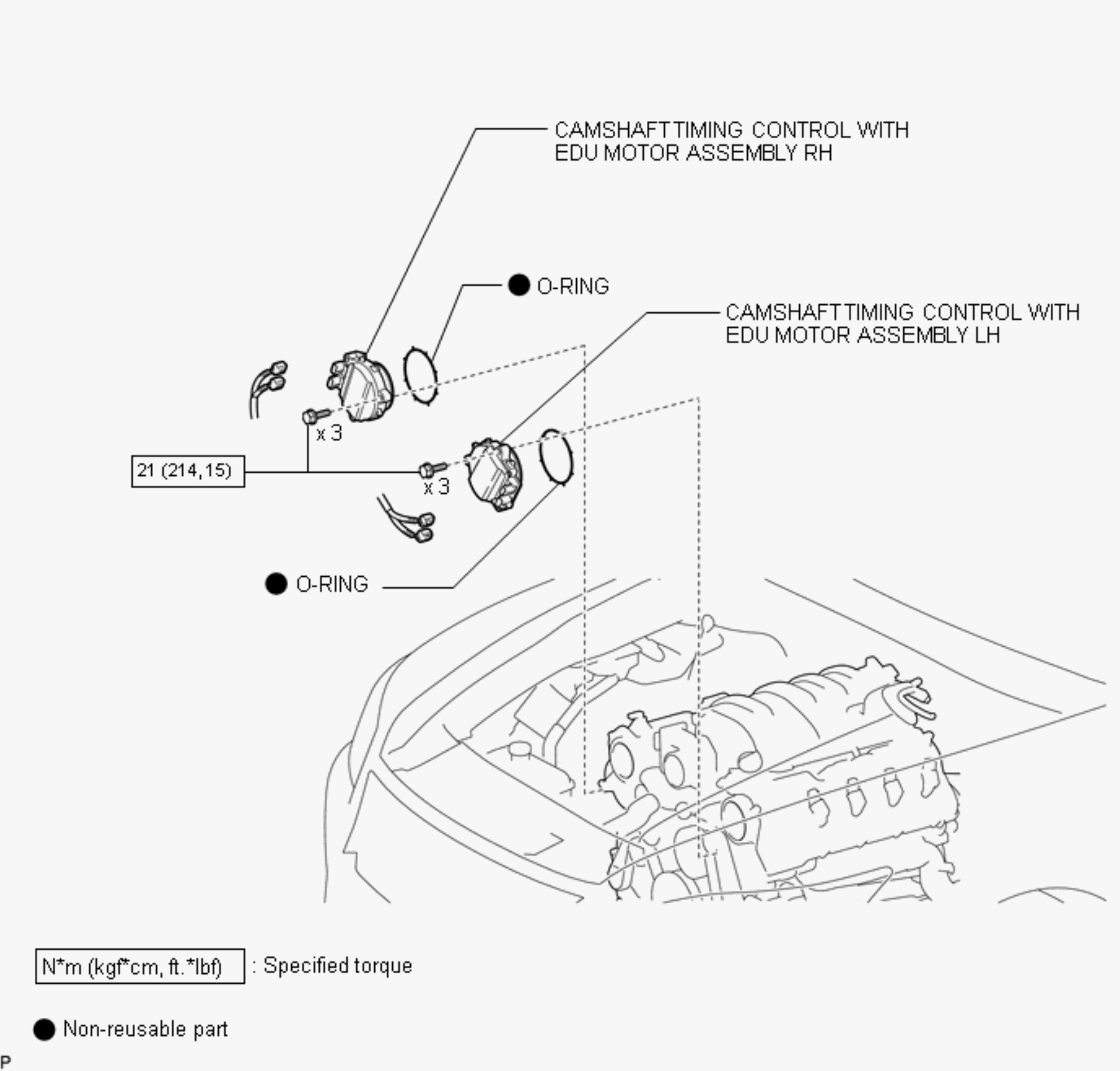

Fig 1: Camshaft Timing Control Motor Component Location With Torque Specifications

GTY645043

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
