Components [10/2016 - 10/2017]

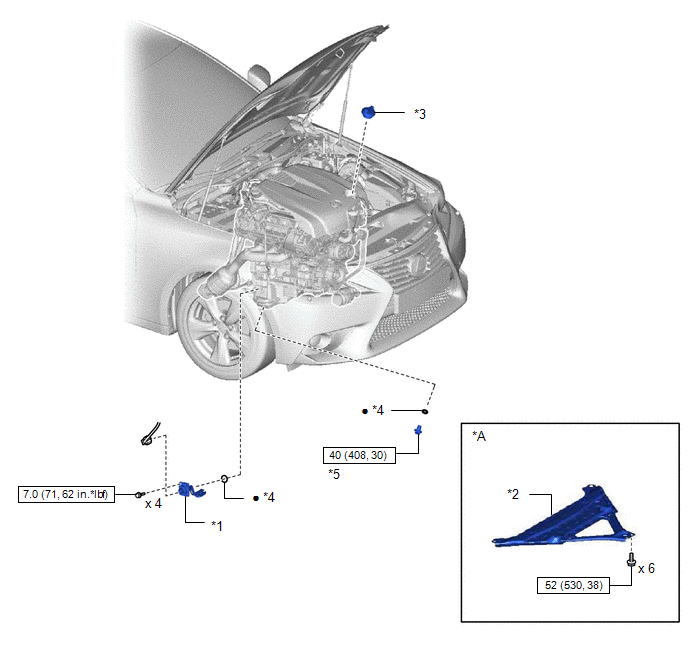

Fig 1: Oil Level Sensor Replacement Components With Torque Specifications [10/2016 - 10/2017]
GTY630214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A For 2WD - -
*1 ENGINE OIL LEVEL SENSOR *2 FRONT SUSPENSION MEMBER BRACE
*3 OIL FILLER CAP *4 GASKET
*5 OIL PAN DRAIN PLUG - -
N*m (kgf*cm, ft*lbf) : Specified torque • Non-reusable part
