Removal [09/2014 - ]: Procedure

  1. REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT ASSEMBLY
    1. Remove the instrument panel reinforcement assembly with air conditioning unit assembly (See article. Refer to REMOVAL [09/2014 - ] ).
  2. REMOVE ID CODE BOX (IMMOBILIZER CODE ECU)

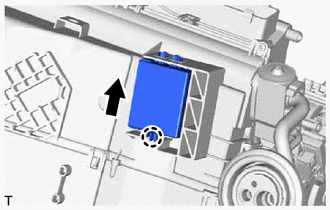

    1. Move the ID code box (immobilizer code ECU) in the direction of the arrow in the illustration to detach the claw.
      GTY402942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

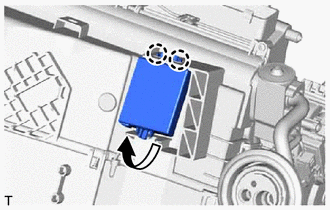

    2. Move the ID code box (immobilizer code ECU) in the direction of the arrow to detach the 2 claws and remove the ID code box (immobilizer code ECU).
      GTY402941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
