Installation [10/2015 - ]: Procedure

INSTALL FORWARD RECOGNITION CAMERA

When using a new forward recognition camera:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the protective film.
NOTE:
Do not touch the camera lens after removing the protective film.

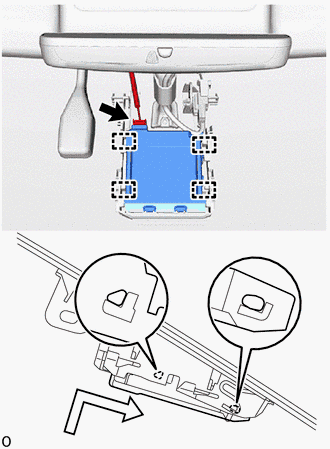

Engage the 4 guides as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Connector
	Install in this Direction

NOTE:

Do not touch the camera lens.

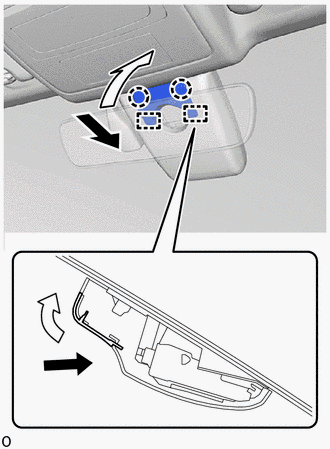

INSTALL FORWARD RECOGNITION LATCH

Attach the 4 guides and 2 claws to install the forward recognition latch as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Install in this Direction (1)
	Install in this Direction (2)

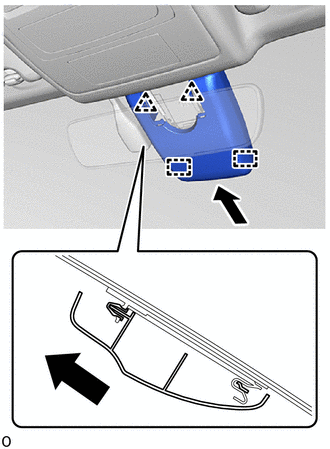

INSTALL NO. 1 FORWARD RECOGNITION COVER

Attach the 2 clips and 2 guides to install the No. 1 forward recognition cover as shown in the illustration.

Install in this Direction

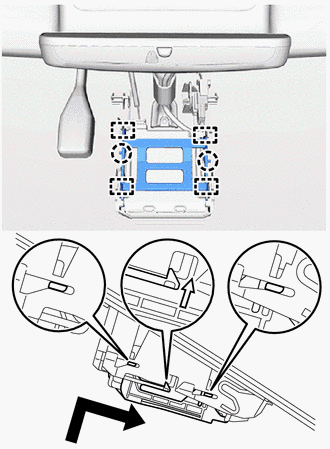

INSTALL NO. 2 FORWARD RECOGNITION COVER

Attach the 2 guides and 2 claws to install the No. 2 forward recognition cover as shown in the illustration.

	Install in this Direction (1)
	Install in this Direction (2)

ADJUST FORWARD RECOGNITION CAMERA
1. If the forward recognition camera has been replaced with a new one or the windshield glass has been removed and installed, it is necessary to perform Forward Recognition Camera Learning.
  Refer to ADJUSTMENT [10/2015 - ]
