Removal [10/2015 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 1

  2. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH

    Refer to PROCEDURE - Step 2

  3. PRECAUTION
    NOTE:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

    Refer to PRECAUTION [10/2015 - ]

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [10/2015 - ]

  5. REMOVE STEERING PAD

    Refer to REMOVAL [10/2015 - 09/2016] Refer to REMOVAL [09/2016 - ]

  6. REMOVE CRUISE CONTROL MAIN SWITCH

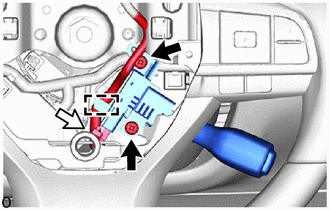

    1. Detach the clamp.
      GTY523185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screws
      Connector
    2. Disconnect the connector.
    3. Remove the 2 screws and cruise control main switch.
