Removal [10/2015 - ]: Procedure

  1. REMOVE GENERATOR ASSEMBLY

    Refer to REMOVAL [10/2015 - ]

  2. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  3. DRAIN ENGINE COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 1

  4. REMOVE POWER STEERING ECU ASSEMBLY

    Refer to REMOVAL [09/2014 - ]

  5. REMOVE BATTERY TRAY
    1. Remove the 2 bolts and battery try.
      GTY419952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 3 INTERCOOLER COOLING WATER HOSE

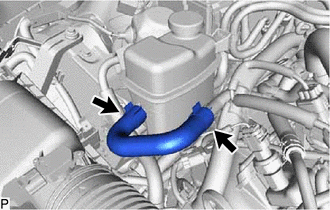

    1. Slide the 2 hose clamps and remove the No. 3 intercooler cooling water hose.
      GTY661853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE INTERCOOLER RESERVOIR ASSEMBLY

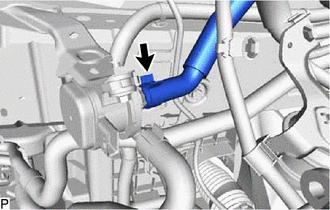

    1. Slide the hose clamp and disconnect the No. 4 intercooler cooling water hose from the electric water pump assembly.
      GTY661852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

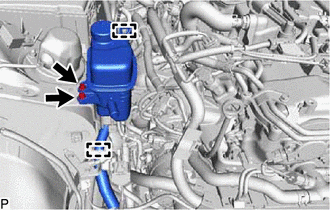

    2. Detach the clamp to disconnect the No. 4 intercooler cooling water hose from the body.
      GTY661845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the clamp to disconnect the fuel hose assembly from the intercooler reservoir assembly.
    4. Remove the 2 bolts and intercooler reservoir assembly.
  8. REMOVE WIRE HARNESS CLAMP BRACKET

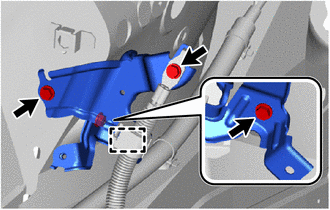

    1. Remove the bolt and detach the clamp to disconnect the No. 3 engine wire from the wire harness clamp bracket.
      GTY638465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and wire harness clamp bracket.
  9. DISCONNECT NO. 2 INTERCOOLER COOLING WATER HOSE

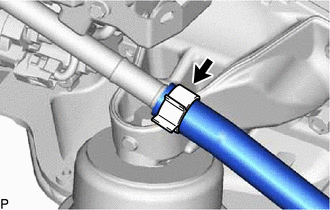

    1. Slide the hose clamp and disconnect the No. 2 intercooler cooling water hose from the water by-pass pipe.
      GTY662033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE WATER BY-PASS PIPE

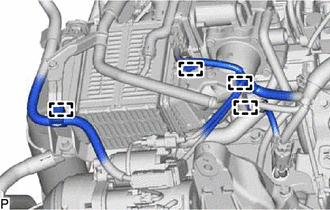

    1. Detach the 4 wire harness clamps to disconnect the engine wire and No. 2 engine wire from the water by-pass pipe.
      GTY662038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

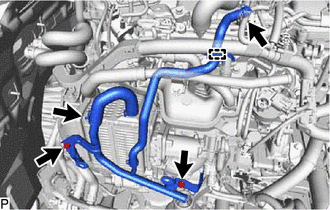

    2. Slide the hose clamp and disconnect the No. 9 water by-pass hose from the water by-pass pipe.
      GTY661844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Slide the hose clamp and disconnect the No. 2 turbo water hose from the No. 1 turbo water by-pass pipe sub-assembly.
    4. Remove the 2 bolts and water by-pass pipe.
  11. REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
    1. Disconnect the connector from the throttle body with motor assembly.

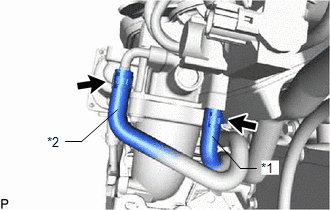

    2. Slide the 2 hose clamps and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the throttle body with motor assembly.
      GTY678647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Water By-pass Hose
      *2 No. 2 Water By-pass Hose

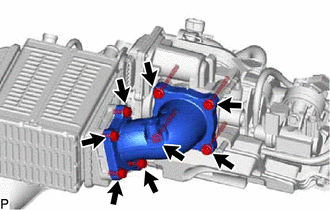

    3. Remove the 8 bolts and No. 2 air tube and throttle body with motor assembly.
      GTY661843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 gaskets.
