Components [10/2015 - ]: Illustration

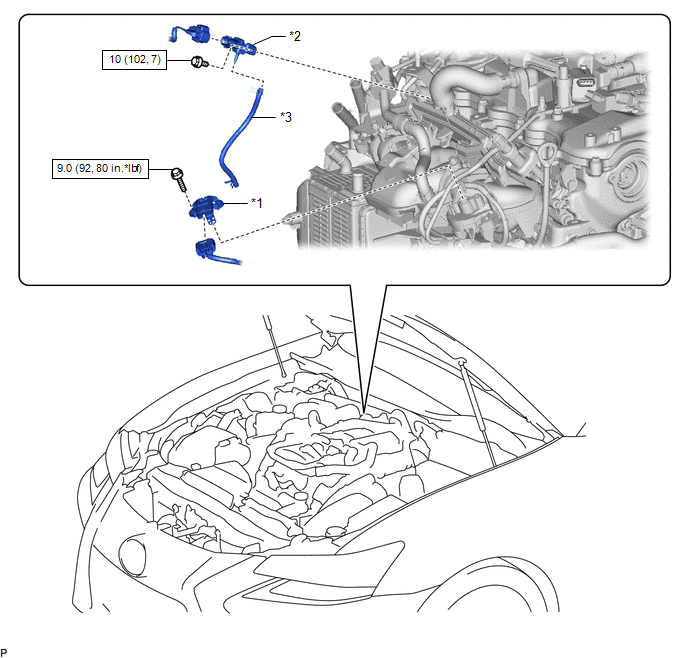

Fig 1: Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications
GTY636824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 NO. 1 TURBO PRESSURE SENSOR *2 NO. 2 TURBO PRESSURE SENSOR
*3 VACUUM HOSE - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
