Components [07/2015 - ]: Illustration

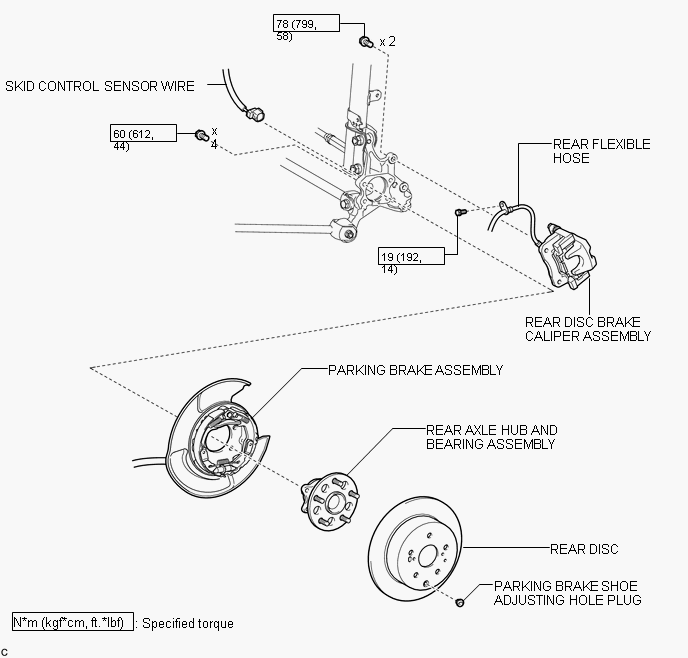

Fig 1: Rear Axle Hub Replacement Components With Torque Specifications

GTY641723

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
