Removal [08/2014 - ]: Procedure
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (See article. Refer to PRECAUTION [08/2014 - ] ).
- REMOVE REAR NO. 2 FLOOR BOARD
Refer to PROCEDURE - Step 1
- REMOVE REAR DECK FLOOR BOX
Refer to PROCEDURE - Step 2
- REMOVE REAR NO. 3 FLOOR BOARD
Refer to PROCEDURE - Step 3
- REMOVE DECK FLOOR BOX RH
Refer to PROCEDURE - Step 4
- REMOVE REAR FLOOR BOARD UPPER NO. 3 PLATE
Refer to PROCEDURE - Step 5
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See article. Refer to INITIALIZATION [08/2014 - 08/2015] Refer to INITIALIZATION [08/2015 - ] ).
- REMOVE FRONT DOOR SCUFF PLATE RH
HINT:
Use the same procedure for the RH side and LH side (See article. Refer to PROCEDURE - Step 21 ).
- REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
HINT:
Use the same procedure for the RH side and LH side (See article. Refer to PROCEDURE - Step 22 ).
- DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
Refer to PROCEDURE - Step 10
- REMOVE INSTRUMENT SIDE PANEL RH
Refer to PROCEDURE - Step 19
- REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 20
- REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to PROCEDURE - Step 13
- REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
Refer to PROCEDURE - Step 24
- REMOVE ECU INTEGRATION BOX RH
Refer to PROCEDURE - Step 14

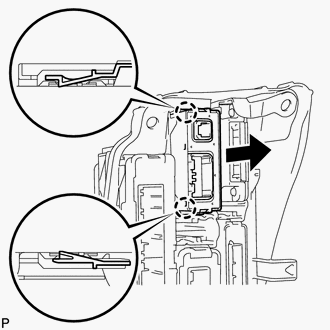

- REMOVE SEAT BELT CONTROL ECU
