Components [08/2014 - ]: Illustration

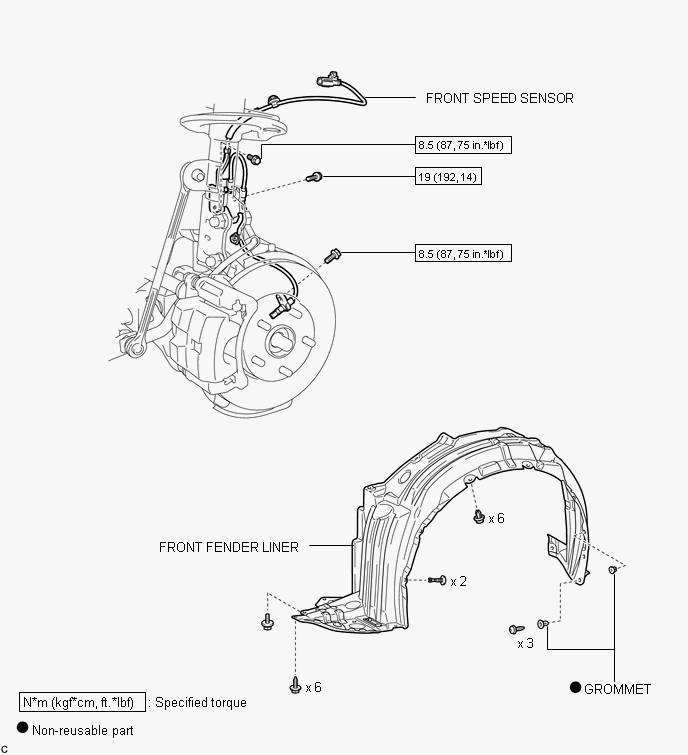

Fig 1: Front Speed Sensor Replacement Components With Torque Specifications

GTY529979

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
