Components [07/2020 - ]
WARNING: This page is about a different car, the 2021 Lexus NX 300h and 2020 Lexus NX 300h. However, it is still accessible from the selected car via links, so may be relevant.

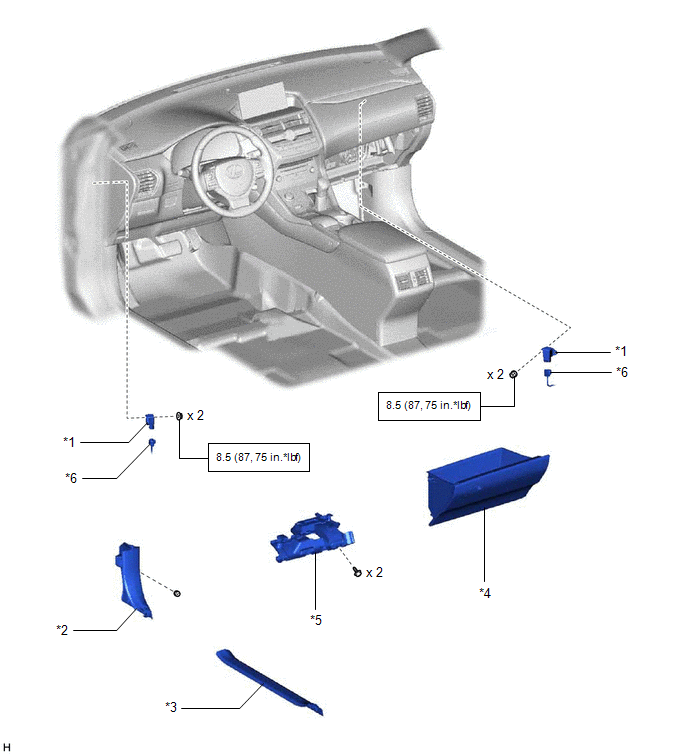

| Callout | Description | Callout | Description |
| *1 | ACCELERATION SENSOR | *2 | COWL SIDE TRIM BOARD LH |
| *3 | DOOR SCUFF PLATE ASSEMBLY LH | *4 | GLOVE COMPARTMENT DOOR ASSEMBLY |
| *5 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | *6 | CONNECTOR |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
