Components [07/2020 - ]
WARNING: This page is about a different car, the 2021 Lexus NX 300h and 2020 Lexus NX 300h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

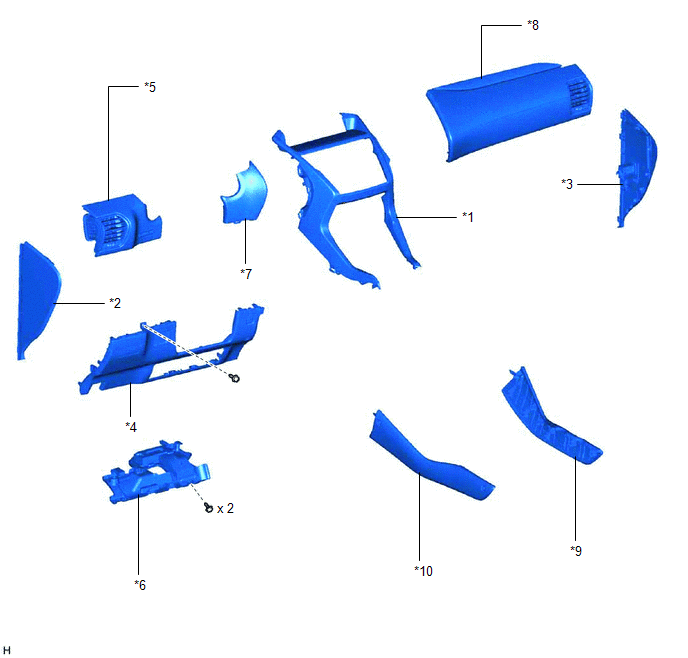

| *1 |
CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY |
*2 |
INSTRUMENT SIDE PANEL LH |
| *3 |
INSTRUMENT SIDE PANEL RH |
*4 |
LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL |
| *5 |
NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY |
*6 |
NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
| *7 |
NO. 1 SWITCH HOLE BASE |
*8 |
NO. 2 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY |
| *9 |
UPPER NO. 1 CONSOLE PANEL GARNISH |
*10 |
UPPER NO. 2 CONSOLE PANEL GARNISH |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

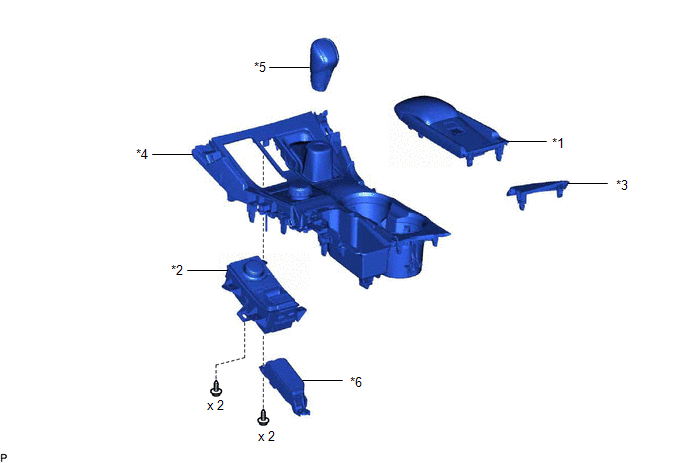

| *1 |
CONSOLE ARMREST ASSEMBLY |
*2 |
INTEGRATION CONTROL AND PANEL ASSEMBLY (ABSORBER CONTROL SWITCH) |
| *3 |
UPPER REAR CONSOLE PANEL |
*4 |
UPPER REAR CONSOLE PANEL SUB-ASSEMBLY |
| *5 |
SHIFT LEVER KNOB SUB-ASSEMBLY |
*6 |
SHIFT POSITION INDICATOR |
