Home >> Lexus >> 2015 >> GS 350 Base, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System - Diagnostics - Introduction >> SFI System >> Parts Location [09/2014 - 10/2015] >> Illustration

Parts Location [09/2014 - 10/2015]: Illustration

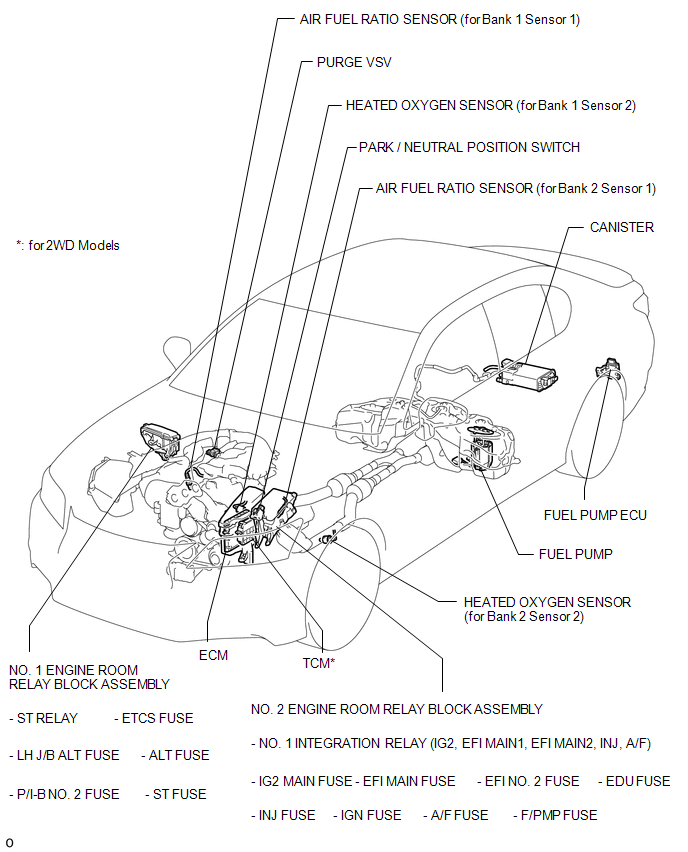

GTY674073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

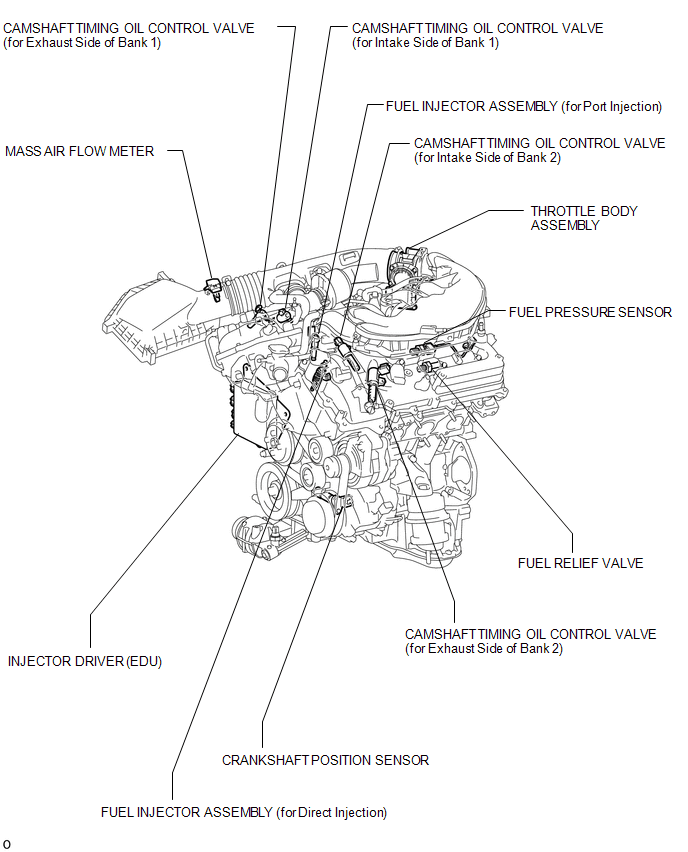

GTY471079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

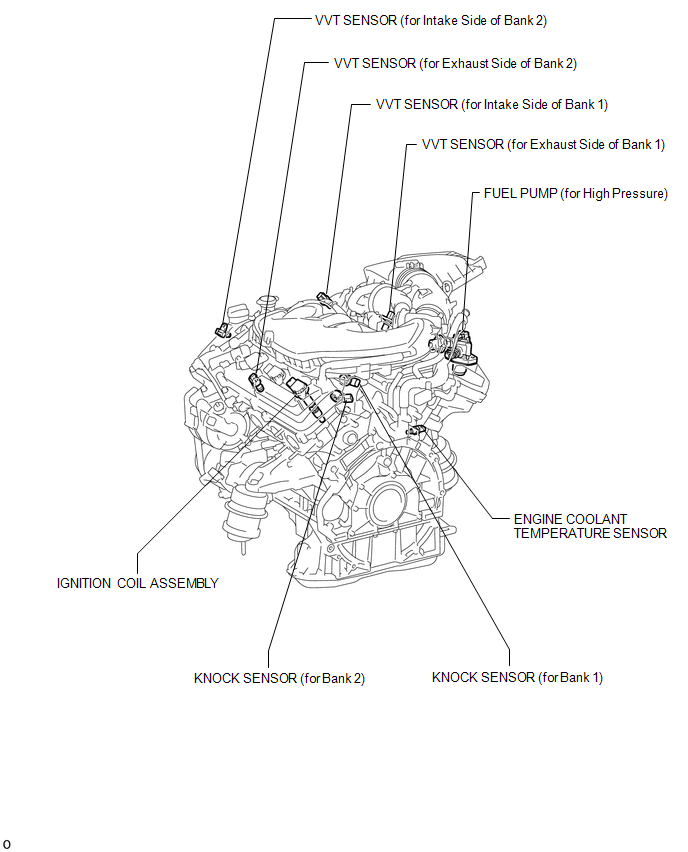

GTY419210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

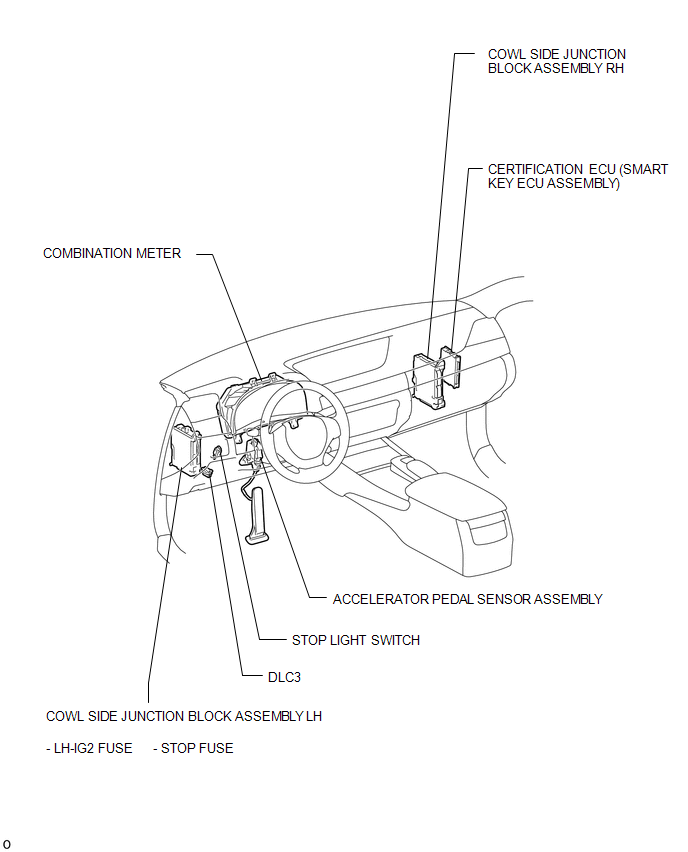

GTY678795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
