Removal [09/2014 - 10/2015]: Procedure

  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. DISCONNECT NO. 2 VENTILATION HOSE

    See step  7

  5. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  8

  6. REMOVE IGNITION COIL ASSEMBLY
    1. Remove the 2 nuts and disconnect the wire harness.
      GTY409306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

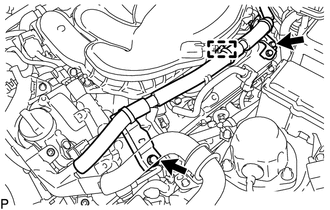

    2. Disconnect the wire harness clamp.
      GTY416145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and disconnect the 2 wire harness brackets.
    4. Disconnect the 6 ignition coil connectors.
    5. Remove the 6 bolts and the 6 ignition coil assemblies.
      GTY404324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SPARK PLUG
    1. Remove the 6 spark plugs.
