Removal [09/2014 - 10/2015]: Procedure

REMOVE FRONT SEAT ASSEMBLY LH (for AWD)
- for Sports Seat Type (Refer to REMOVAL [09/2014 - ] )
- for Luxury Seat Type (Refer to REMOVAL [09/2014 - ] )
- for Standard Seat Type (Refer to REMOVAL [09/2014 - ] )
REMOVE INSTRUMENT PANEL FINISH PANEL END RH
(Refer to REMOVAL [09/2014 - ] )
REMOVE INSTRUMENT PANEL FINISH PANEL END LH (for 2WD)
(Refer to REMOVAL [09/2014 - ] )

DISCONNECT HEATED OXYGEN SENSOR CONNECTOR

for Bank 1 Sensor 2:

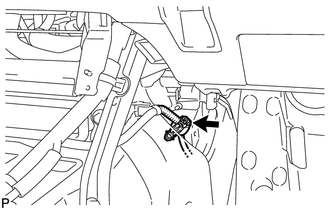

GTY410805

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the heated oxygen sensor connector.

for Bank 2 Sensor 2:

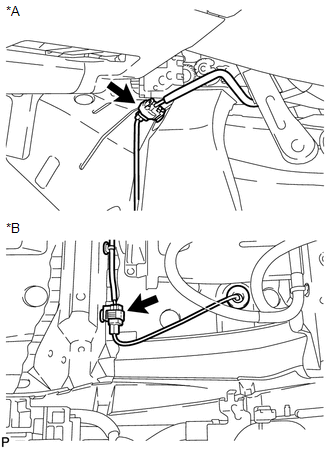

GTY419476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the heated oxygen sensor connector.

TEXT IN ILLUSTRATION

*A	for 2WD
*B	for AWD

REMOVE FRONT FLOOR COVER LH (for AWD)

Remove the 3 nuts, 3 grommets and front floor cover LH.

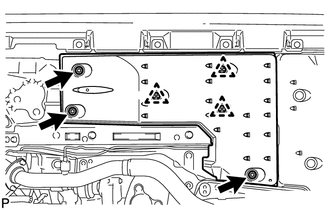

GTY410809

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE HEATED OXYGEN SENSOR

for Bank 1 Sensor 2:

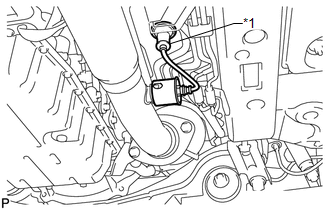

GTY668372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the grommet from the body.

TEXT IN ILLUSTRATION

*1

Grommet

Using SST, remove the heated oxygen sensor.

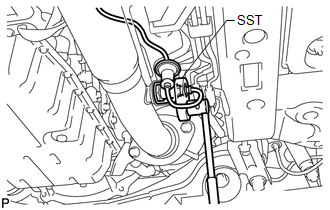

GTY614026

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09224-00010

for Bank 2 Sensor 2:

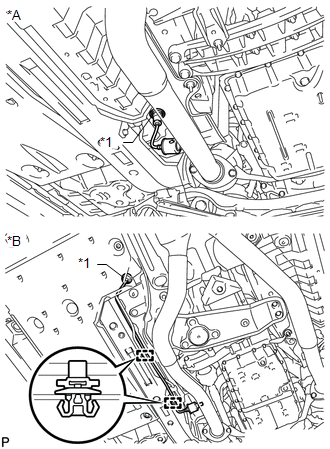

GTY621494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the grommet from the body.

TEXT IN ILLUSTRATION

*A	for 2WD
*B	for AWD
*1	Grommet

for AWD:
Disconnect the 2 clamps.

Using SST, remove the heated oxygen sensor.

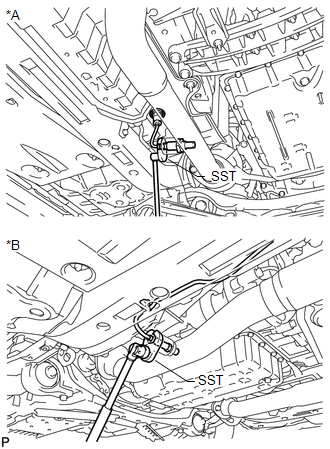

GTY627944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09224-00010

TEXT IN ILLUSTRATION

*A	for 2WD
*B	for AWD
