Removal [09/2014 - 10/2015]: Procedure

  1. DRAIN ENGINE OIL

    See step  1

  2. REMOVE FRONT SUSPENSION MEMBER BRACE (for 2WD)

    Refer to PROCEDURE - Step 13

  3. REMOVE NO. 2 ENGINE UNDER COVER (for 2WD)

    Refer to PROCEDURE - Step 14

  4. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the engine oil level sensor connector.

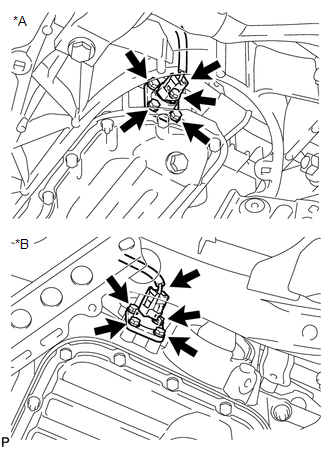

      GTY641161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *A for 2WD
      *B for AWD
    2. Remove the 4 bolts and engine oil level sensor.
    3. Cut off the gasket as shown in the illustration.
      GTY383057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Cutting Position
      *2 Supply Part
    4. Remove the gasket from the engine oil level sensor.

      HINT:

      After cutting away the parts of the gasket shown in the illustration, remove only the outer part of the gasket.
