Components [09/2013 - ]: Illustration

Fig 1: Exploded View Of Fuel Pressure Pulsation Damper (For Direct Injection) Replacement Components With Torque Specifications (1 Of 2)
GTY120914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

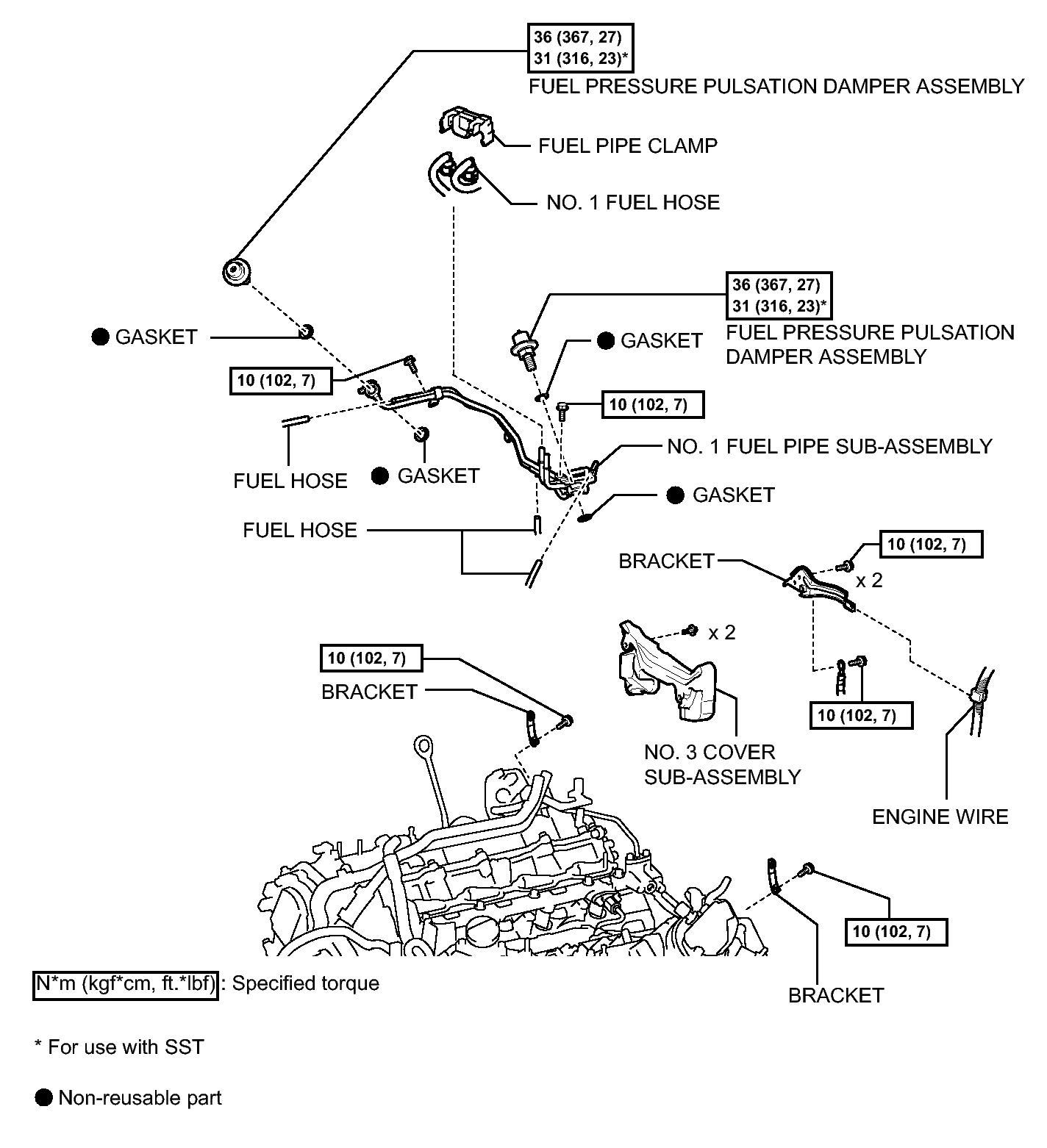

Fig 1: Exploded View Of Fuel Pressure Pulsation Damper (For Direct Injection) Replacement Components With Torque Specifications (2 Of 2)
GTY408438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
