Fuel System (4GR-FSE) - Service Information
>>
Fuel Pressure Sensor
>>
Components [04/2013 - 08/2015]
Components [04/2013 - 08/2015]

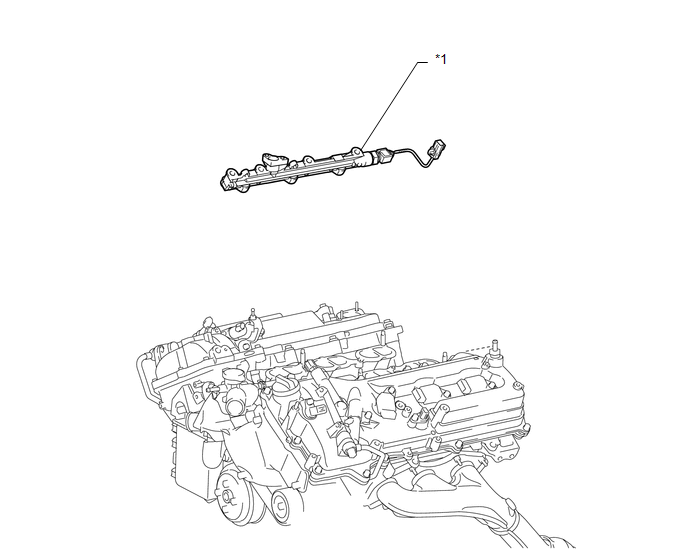

Fig 1: Fuel Pressure Sensor Replacement Components [04/2013 - 08/2015]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FUEL DELIVERY PIPE SUB-ASSEMBLY (FUEL PRESSURE SENSOR)
-
