Terminals Of ECM [09/2013 - ]

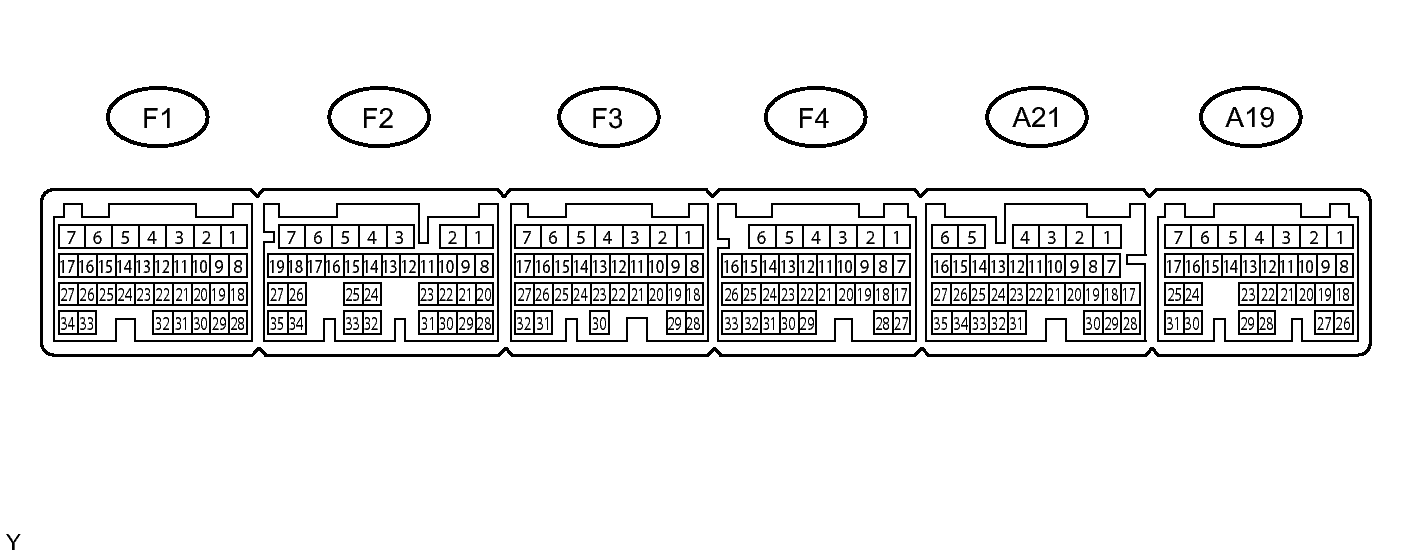

Fig 1: ECM Connector Terminal Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The standard normal voltage between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the ECM terminal locations.

*1: for 2WD

*2: for AWD

HINT:

*: The ECM terminal voltage is constant regardless of the output voltage from the sensor.

1. WAVEFORM 1
   Fig 2: Identifying Waveform 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CAMSHAFT TIMING OIL CONTROL VALVE (OCV)



   ECM Terminal Name	Between OC1+ and OC1- or OC2+ and OC2- Between OE1+ and OE1- or OE2+ and OE2-
   Tester Range	5 V/DIV., 1 ms./DIV.
   Condition	Idling

2. WAVEFORM 2
   Fig 3: Identifying Waveform 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   AIR FUEL RATIO SENSOR HEATER:



   ECM Terminal Name	Between HA1A and E04 or HA2A and E05
   Tester Range	5 V/DIV, 10 ms./DIV
   Condition	Idling

   HINT:

   The wavelength varies in accordance with the engine operating condition.

3. WAVEFORM 3
   Fig 4: Identifying Waveform 3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   HEATED OXYGEN SENSOR



   ECM Terminal Name	Between OX1B and E2 or OX2B and E2
   Tester Range	0.2 V/DIV., 200 ms./DIV.
   Condition	Engine speed maintained at 2500 RPM for 2 minutes after warming up engine

   HINT:

   In Data List, item O2S B1S2 and O2S B2S2 shows the ECM input values from the heated oxygen sensor.

4. WAVEFORM 4
   Fig 5: Identifying Waveform 4

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   INJECTOR FOR DIRECT INJECTION NO. 1 (TO NO. 6) INJECTION SIGNAL



   ECM Terminal Name	Between #1 (to #6) and E1
   Tester Range	2 V/DIV., 20 ms./DIV.
   Condition	Idling

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • When the direct injection injectors are operating, Direct is displayed for Injection Way of the Data List.
5. WAVEFORM 5
   Fig 6: Identifying Waveform 5

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   INJECTOR FOR PORT INJECTION NO. 1 (TO NO. 6) INJECTION SIGNAL:



   ECM Terminal Name	Between #10 (to #60) and E01
   Tester Range	20 V/DIV., 1 ms./DIV.
   Condition	Idling

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • When the port injection injectors are operating, Port is displayed for Injection Way of the Data List.
6. WAVEFORM 6
   Fig 7: Identifying Waveform 6

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   KNOCK SENSOR



   ECM Terminal Name	Between KNK1 and EKNK Between KNK2 and EKN2
   Tester Range	1 V/DIV., 1 ms./DIV.
   Condition	Engine speed maintained at 4000 RPM after warming up engine

   HINT:

   • The wavelength becomes shorter as the engine speed increases.
   • The waveforms and amplitudes displayed differ slightly depending on the vehicle.

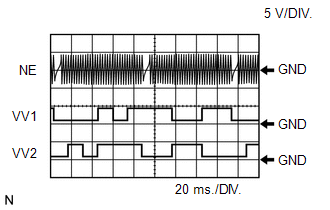

7. WAVEFORM 7
   Fig 8: Identifying Waveform 7

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CRANKSHAFT POSITION SENSOR AND VVT SENSOR FOR INTAKE CAMSHAFT



   ECM Terminal Name	Between NE+ and NE- Between VV1+ and VV1- or VV2+ and VV2-
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine speed increases.

8. WAVEFORM 8
   Fig 9: Identifying Waveform 8

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   CRANKSHAFT POSITION SENSOR AND VVT SENSOR FOR EXHAUST CAMSHAFT



   ECM Terminal Name	Between NE+ and NE- Between EV1+ and EV1- or EV2+ and EV2-
   Tester Range	5 V/DIV., 20 ms./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine speed increases.

9. WAVEFORM 9
   Fig 10: Identifying Waveform 9

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   IGNITER IGT SIGNAL (FROM ECM TO IGNITER) AND IGNITER IGF SIGNAL (FROM IGNITER TO ECM)



   ECM Terminal Name	CH1: Between IGT (1 to 6) and E1 CH2: Between IGF1 and E1 or IGF2 and E1
   Tester Range	2 V/DIV., 20 ms./DIV.
   Condition	Idling

   HINT:

   The wavelength becomes shorter as the engine speed increases.

10. WAVEFORM 10
    Fig 11: Identifying Waveform 10

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    PURGE VSV



    ECM Terminal Name	Between PRG and E1
    Tester Range	10 V/DIV., 20 ms./DIV.
    Condition	Idling

    HINT:

    If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.

11. WAVEFORM 11
    Fig 12: Identifying Waveform 11

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    VEHICLE SPEED SIGNAL



    ECM Terminal Name	Between SPD and E1
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Driving at 20 km/h (12 mph)

    HINT:

    The wavelength becomes shorter as the vehicle speed increases.

12. WAVEFORM 12
    Fig 13: Identifying Waveform 12

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR POSITIVE TERMINAL



    ECM Terminal Name	Between M+ and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

13. WAVEFORM 13
    Fig 14: Identifying Waveform 13

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    THROTTLE ACTUATOR NEGATIVE TERMINAL



    ECM Terminal Name	Between M- and ME01
    Tester Range	5 V/DIV., 1 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The duty ratio varies depending on the throttle actuator operation.

14. WAVEFORM 14
    Fig 15: Identifying Waveform 14

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE SPEED SIGNAL



    ECM Terminal Name	Between TACH and E1
    Tester Range	5 V/DIV., 10 ms./DIV.
    Condition	Idling

    HINT:

    The wavelength becomes shorter as the engine speed increases.

15. WAVEFORM 15
    Fig 16: Identifying Waveform 15

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    INJECTOR FOR DIRECT INJECTION NO. 1 (TO NO. 6) INJECTION SIGNAL AND INJECTION CONFIRMATION SIGNAL



    ECM Terminal Name	CH1: Between #1 or #4 and E1, CH2: Between INJ1 and E1 CH1: Between #2 or #5 and E1, CH2: Between INJ2 and E1 CH1: Between #3 or #6 and E1, CH2: Between INJ3 and E1
    Tester Range	2 V/DIV., 20 ms./DIV.
    Condition	Idling with warm engine

    HINT:

    The wavelength becomes shorter as the engine speed increases.

16. WAVEFORM 16
    Fig 17: Identifying Waveform 16

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    FUEL PUMP FOR HIGH PRESSURE (SPILL VALVE)



    ECM Terminal Name	CH1: Between FPD and E1 CH2: Between FPF1 and E1
    Tester Range	2 V/DIV., 5 ms./DIV.
    Condition	Idling with warm engine

17. WAVEFORM 17
    Fig 18: Identifying Waveform 17

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL



    ECM Terminal Name	Between CANH and E1 Between CANU and E1 Between CANP and E1 Between CAN+ and E1
    Tester Range	1 V/DIV., 10 μs/DIV.
    Condition	Engine switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

18. WAVEFORM 18
    Fig 19: Identifying Waveform 18

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    CAN COMMUNICATION SIGNAL



    ECM Terminal Name	Between CANL and E1 Between CAND and E1 Between CANN and E1 Between CAN- and E1
    Tester Range	1 V/DIV., 10 μs/DIV.
    Condition	Engine switch on (IG)

    HINT:

    The waveform varies depending on the CAN communication signal.

19. WAVEFORM 19
    Fig 20: Identifying Waveform 19

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    ENGINE SPEED SIGNAL



    ECM Terminal Name	Between NEO and E1
    Tester Range	1 V/DIV., 2 ms/DIV.
    Condition	Idling with warm engine

20. WAVEFORM 20
    Fig 21: Identifying Waveform 20

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    COOLING FAN CONTROL SIGNAL



    ECM Terminal Name	Between RFC and E1
    Tester Range	1 V/DIV., 20 ms./DIV.
    Condition	Engine switch on (IG), A/C switch on (max cool)

    HINT:

    The wavelength becomes shorter as the engine coolant temperature.
