Components [09/2012 - ]: Illustration

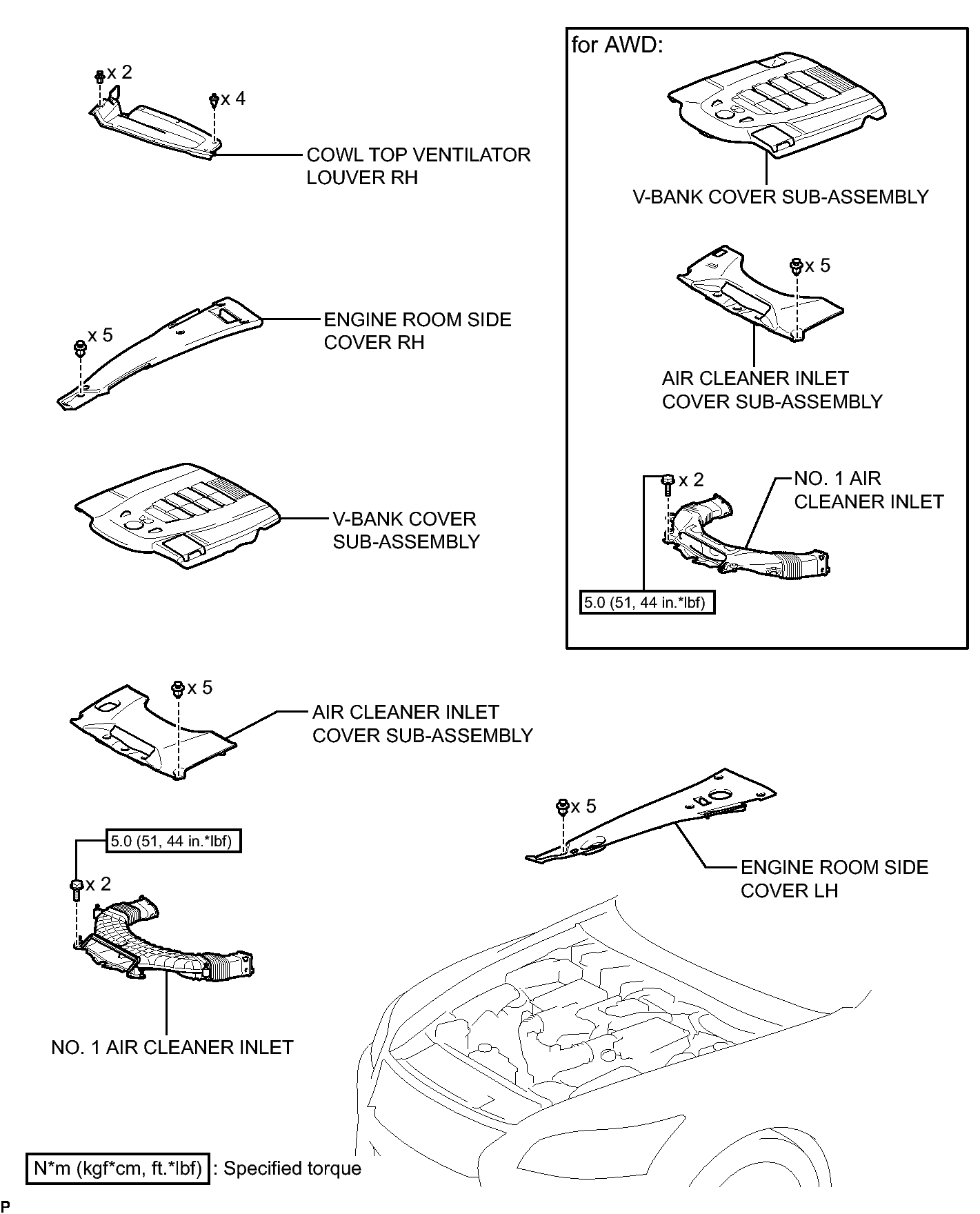

Fig 1: Identifying Ignition Coil & Spark Plug Replacement Components With Torque Specifications (1 Of 3)
GTY405184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

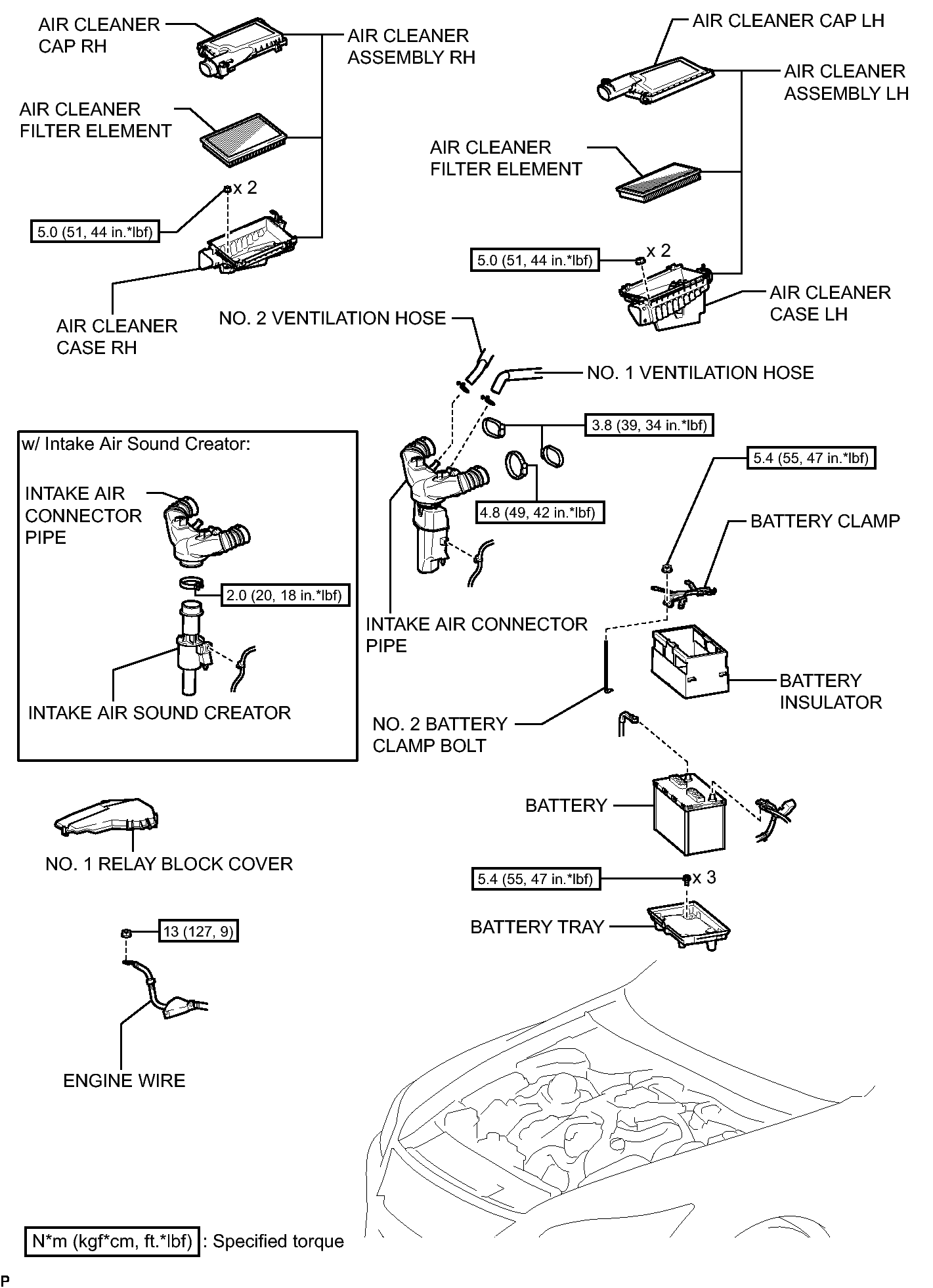

Fig 1: Identifying Ignition Coil & Spark Plug Replacement Components With Torque Specifications (2 Of 3)
GTY413197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

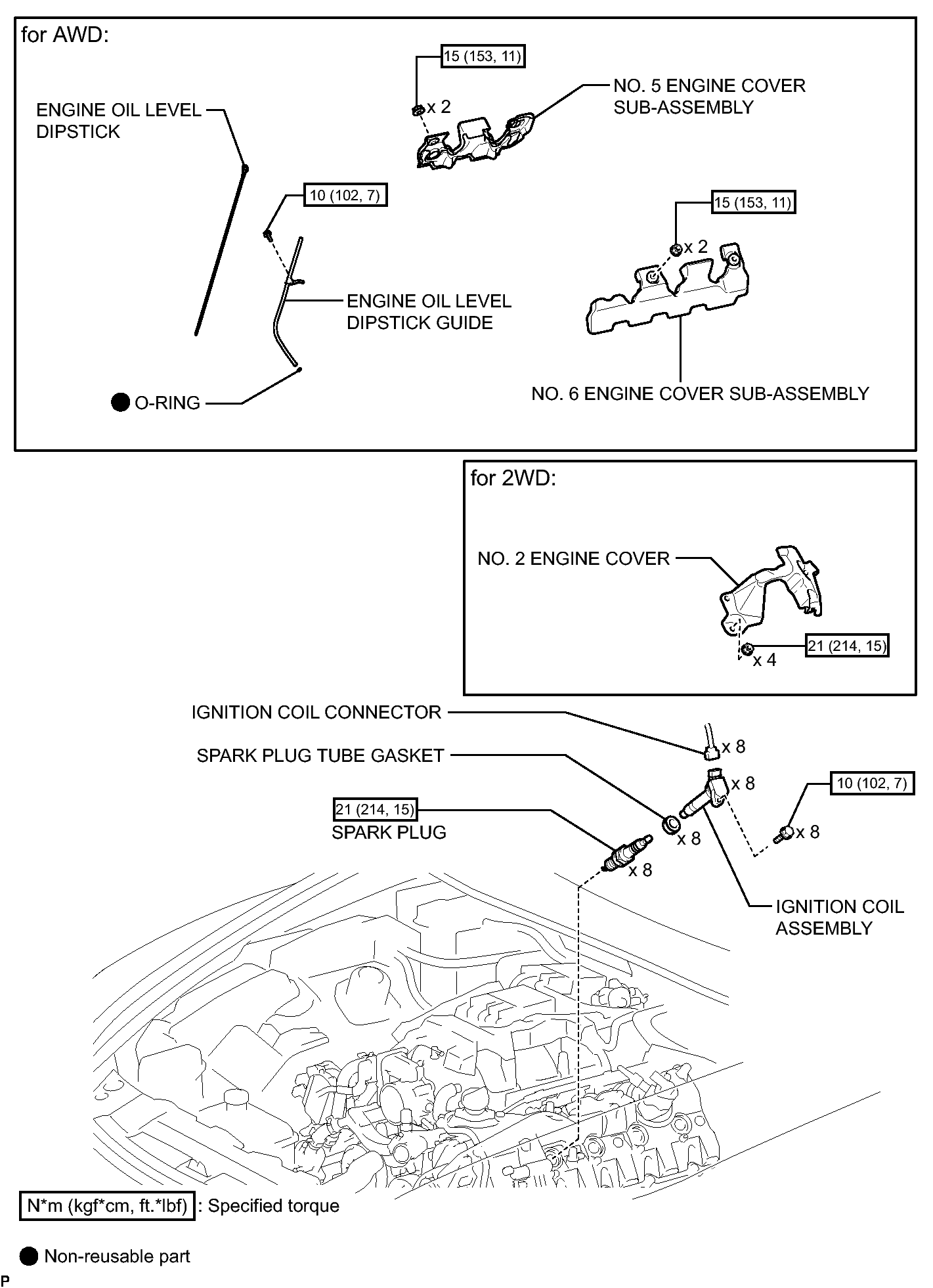

Fig 1: Identifying Ignition Coil & Spark Plug Replacement Components With Torque Specifications (3 Of 3)
GTY417138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
