Components [09/2012 - ]: Illustration

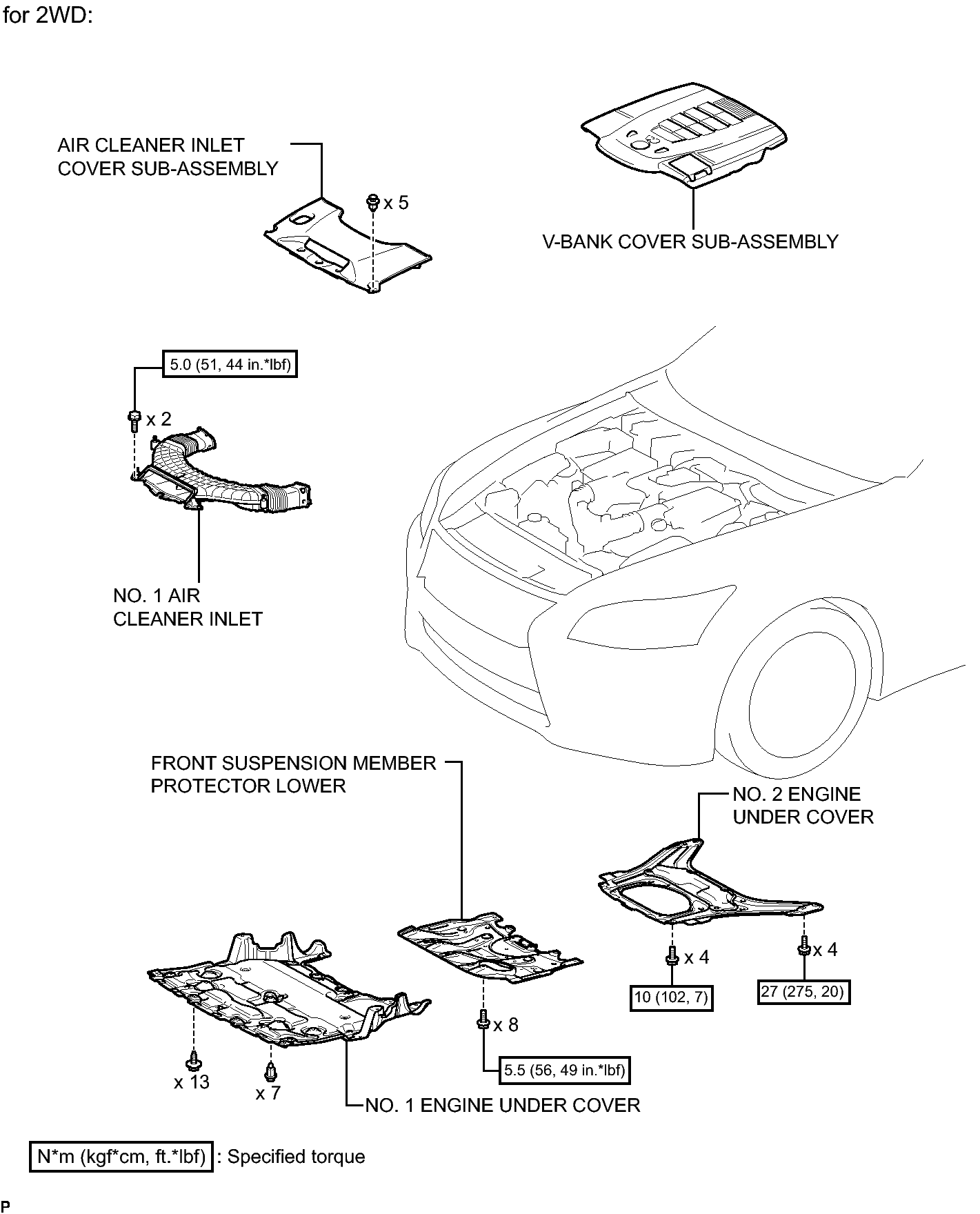

Fig 1: Identifying Generator Replacement Components With Torque Specifications (1 Of 4)
GTY417831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

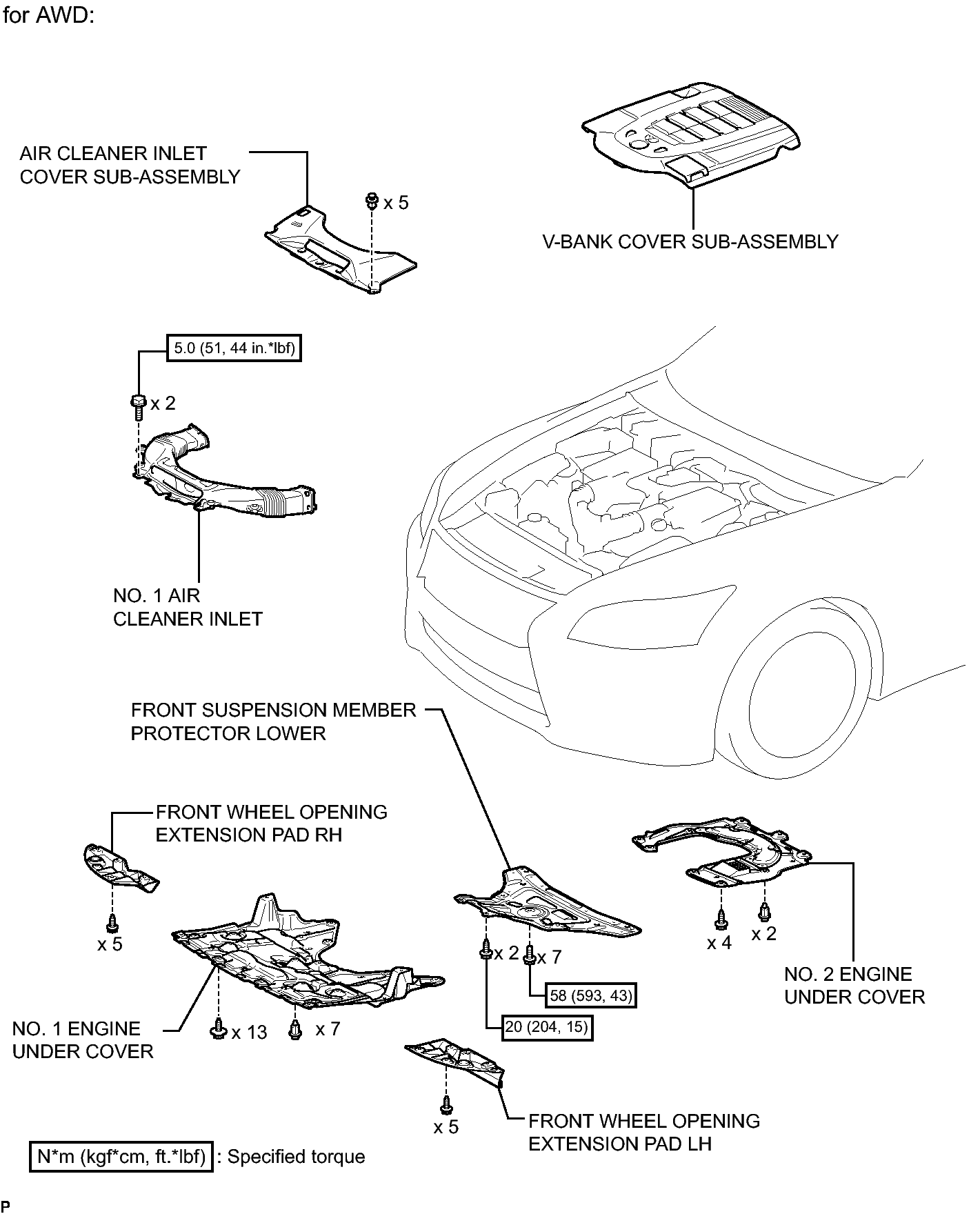

Fig 1: Identifying Generator Replacement Components With Torque Specifications (2 Of 4)
GTY399931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

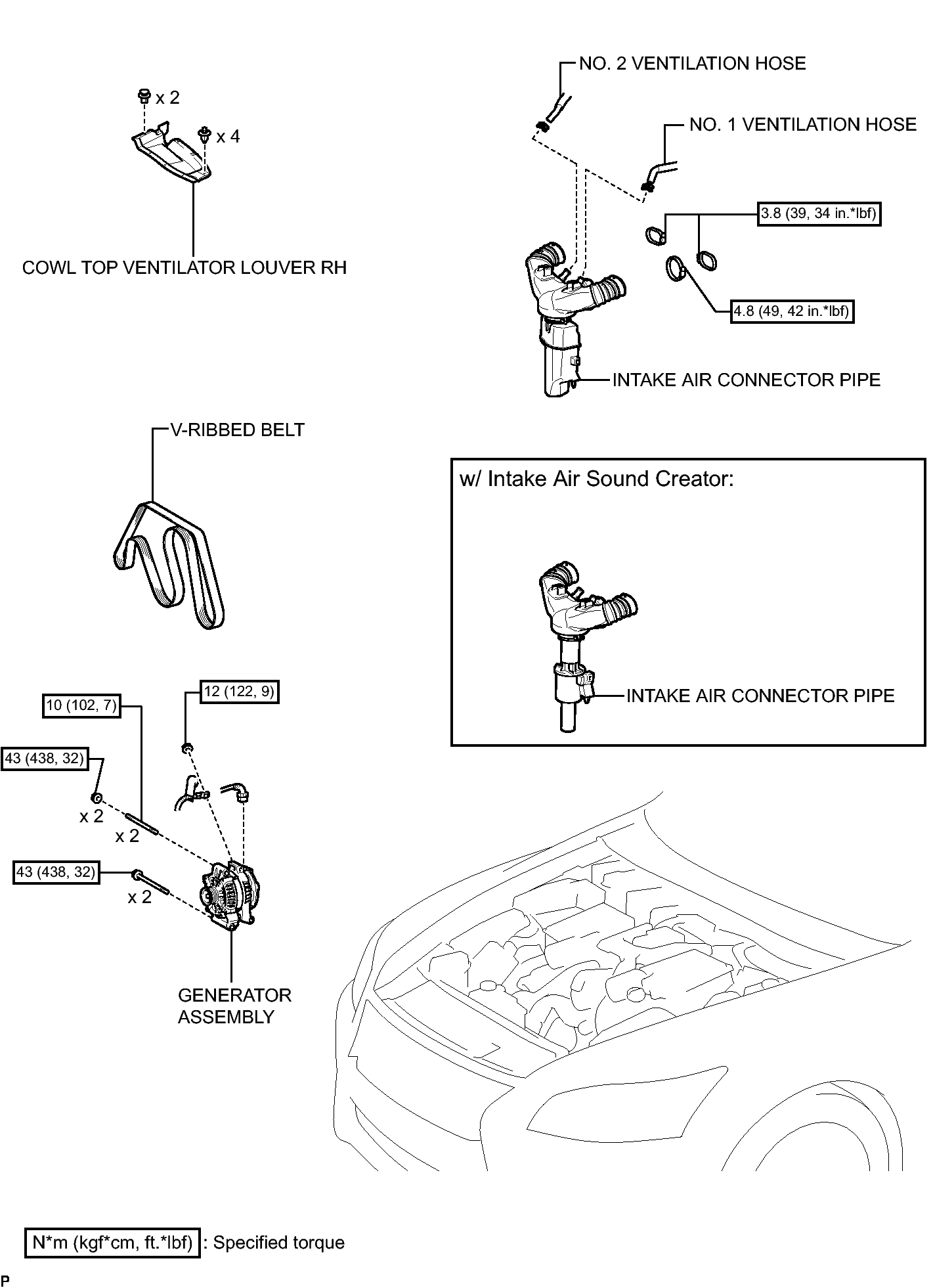

Fig 1: Identifying Generator Replacement Components With Torque Specifications (3 Of 4)
GTY404780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

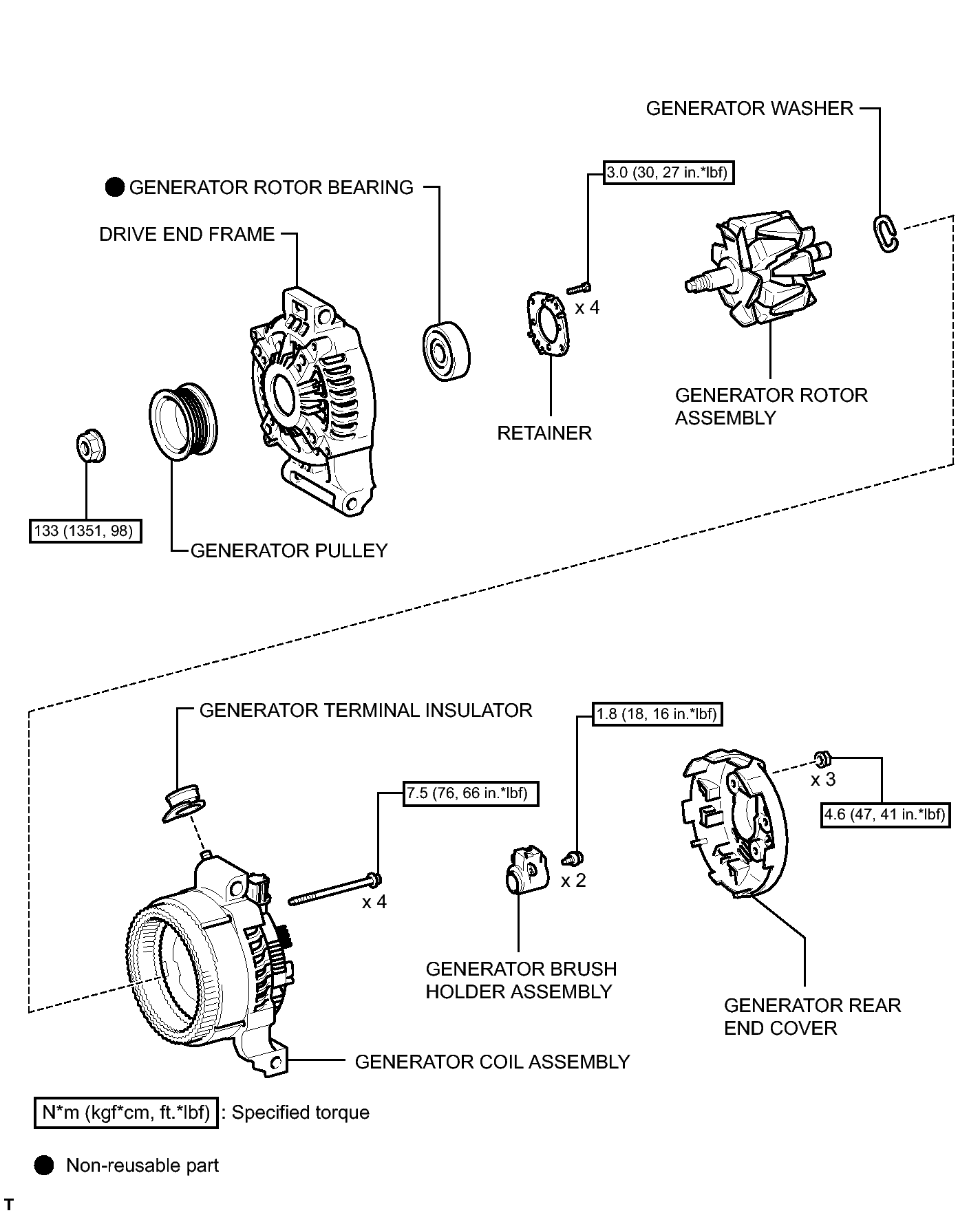

Fig 1: Identifying Generator Replacement Components With Torque Specifications (4 Of 4)
GTY405904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
