Components [09/2012 - ]: Illustration

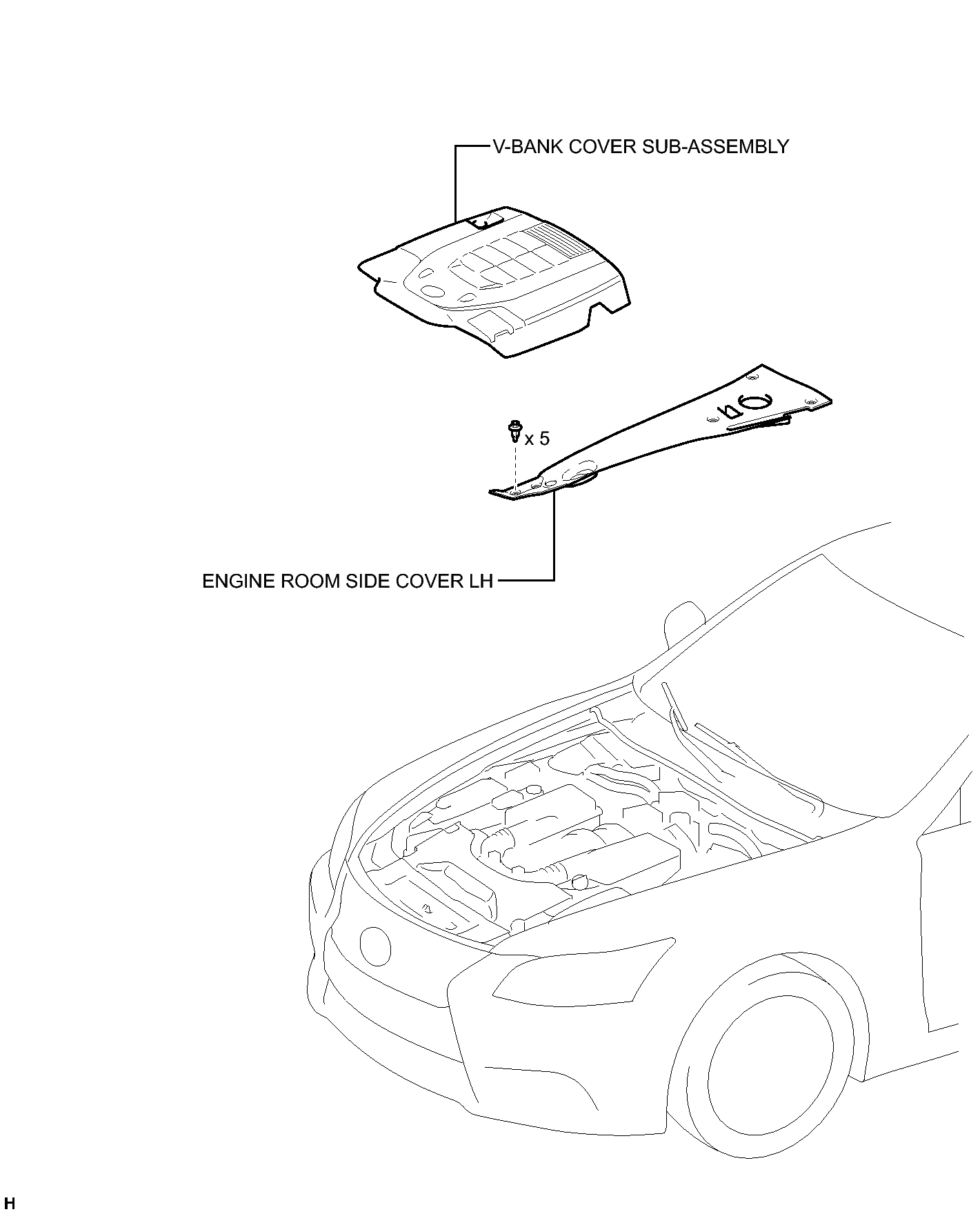

Fig 1: Identifying Skid Control ECU Replacement Components (1 Of 2)
GTY401784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

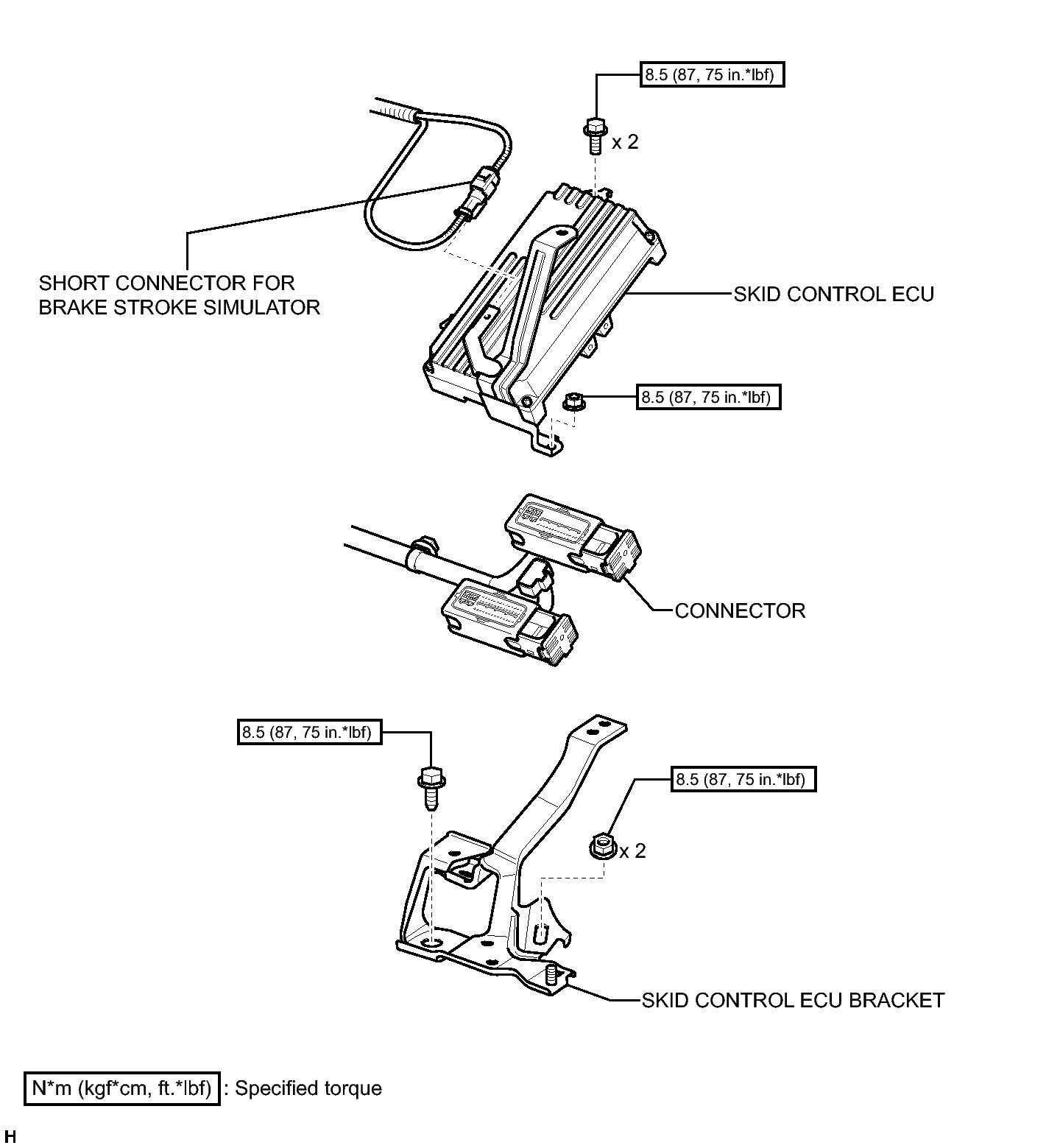

Fig 1: Identifying Skid Control ECU Replacement Components With Torque Specifications (2 Of 2)
GTY416130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
