Driver Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

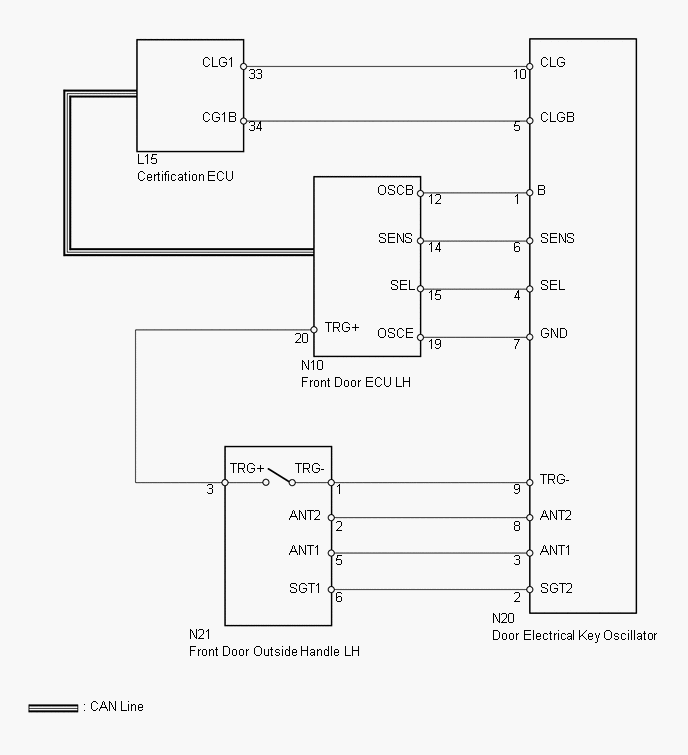

Fig 1: Driver Side Door Electrical Key Oscillator Wiring Diagram

GTY411602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
