Cruise Control Switch Circuit: Wiring Diagram

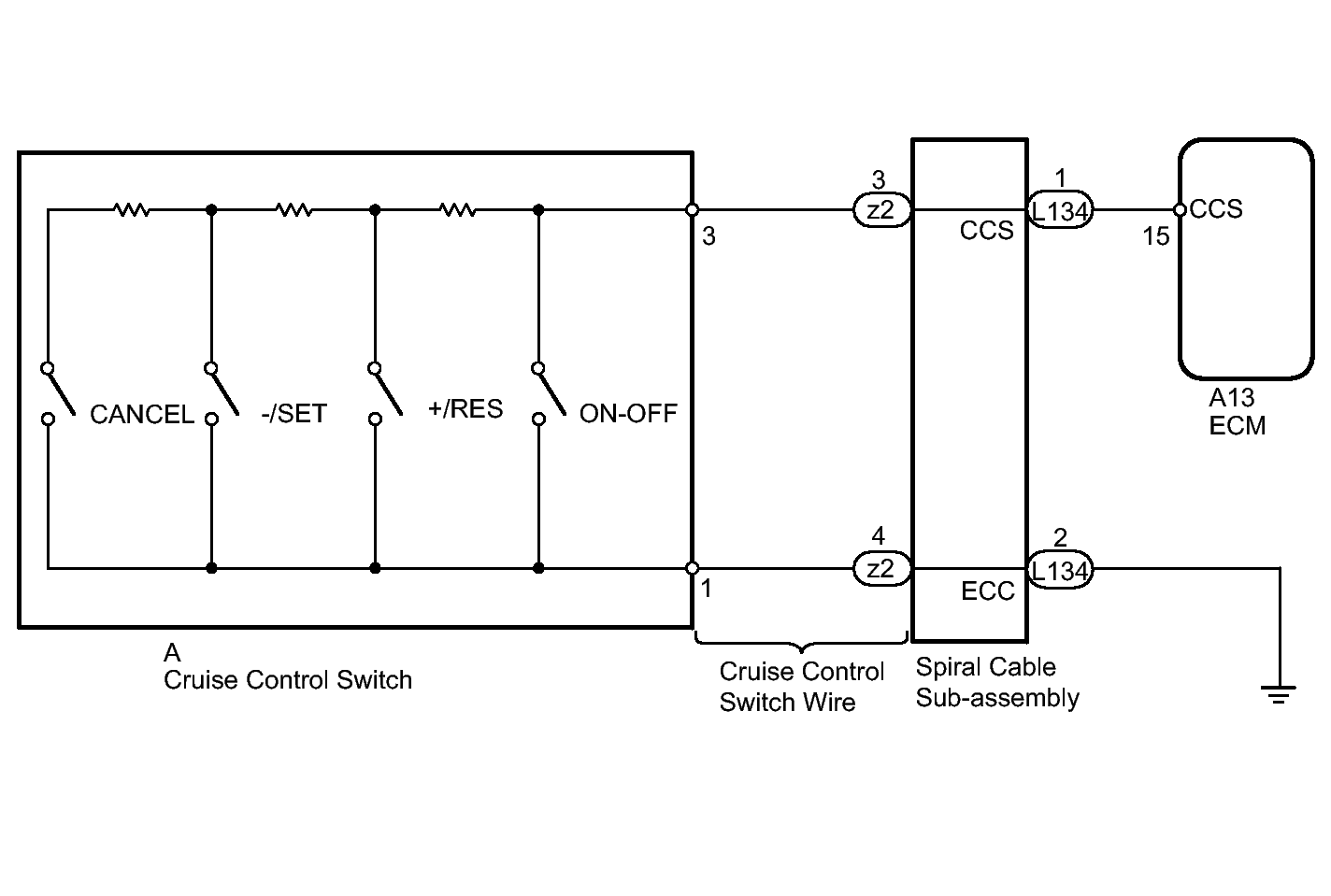

Fig 1: Identifying Cruise Control Switch Wiring Diagram

GTY285764

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
