Power Seat (Front Passenger's Seat): Notes

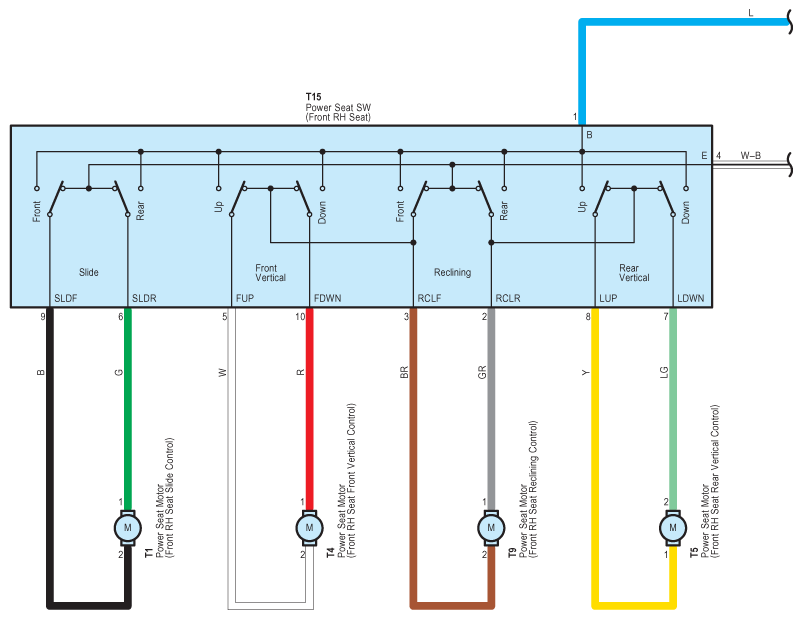

Fig 1: Power Seat (Front Passenger Seat) System Wiring Diagram (1 Of 2)
G09119200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

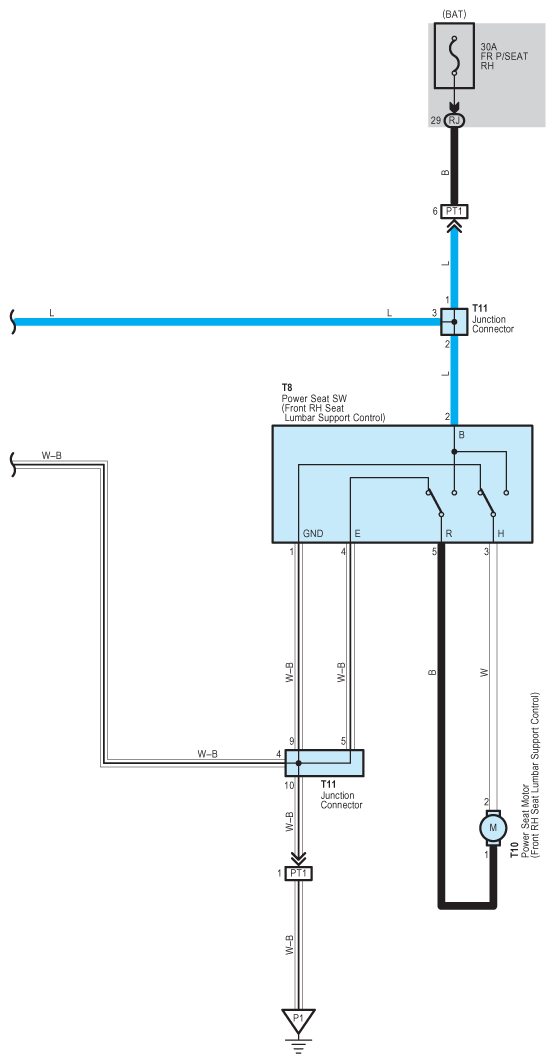

Fig 2: Power Seat (Front Passenger Seat) System Wiring Diagram (2 Of 2)
G09119201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
