Luggage Compartment Door Opener: Notes

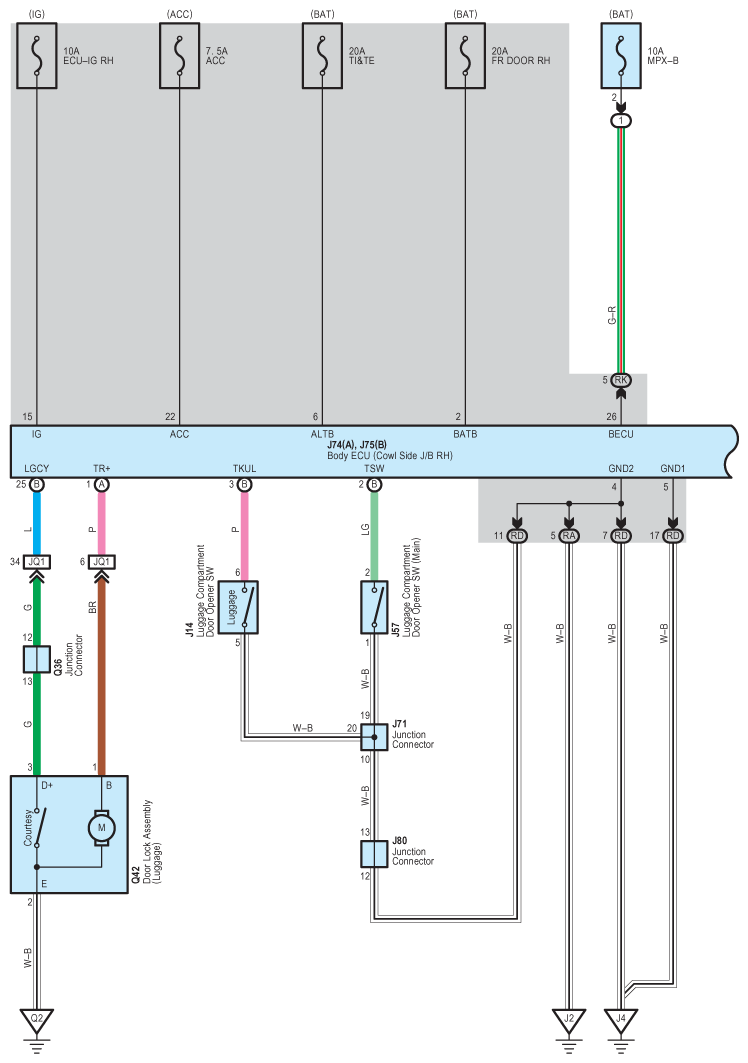

Fig 1: Luggage Compartment Door Opener System Wiring Diagram (1 Of 2)
G09119185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

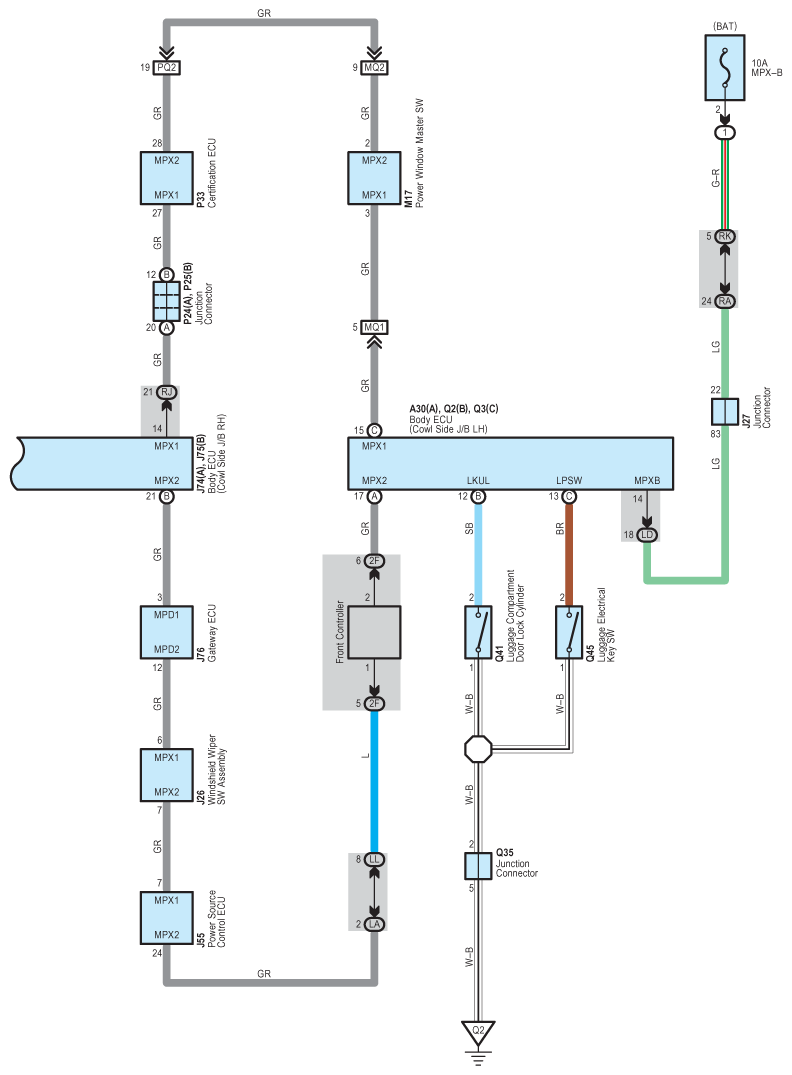

Fig 2: Luggage Compartment Door Opener System Wiring Diagram (2 Of 2)
G09119186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
