Power Rear No. 2 Seat with Stowing Function: Notes

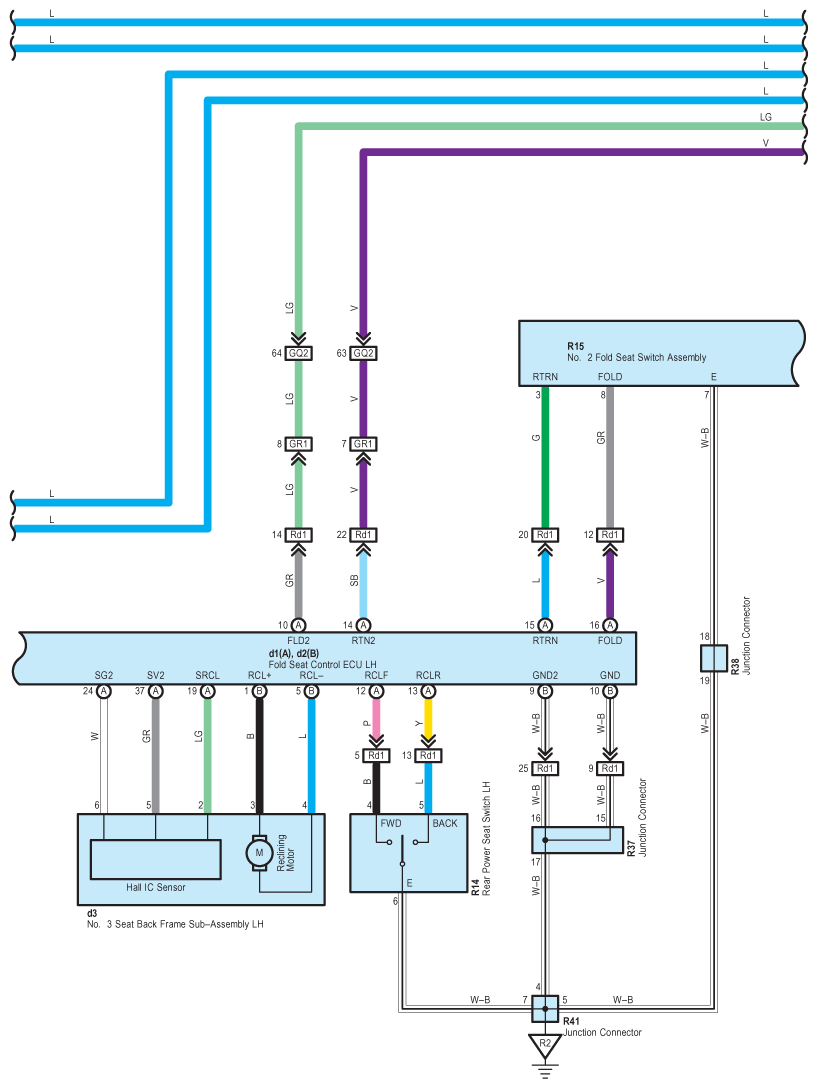

Fig 1: Power Rear No. 2 Seat With Stowing Function - Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

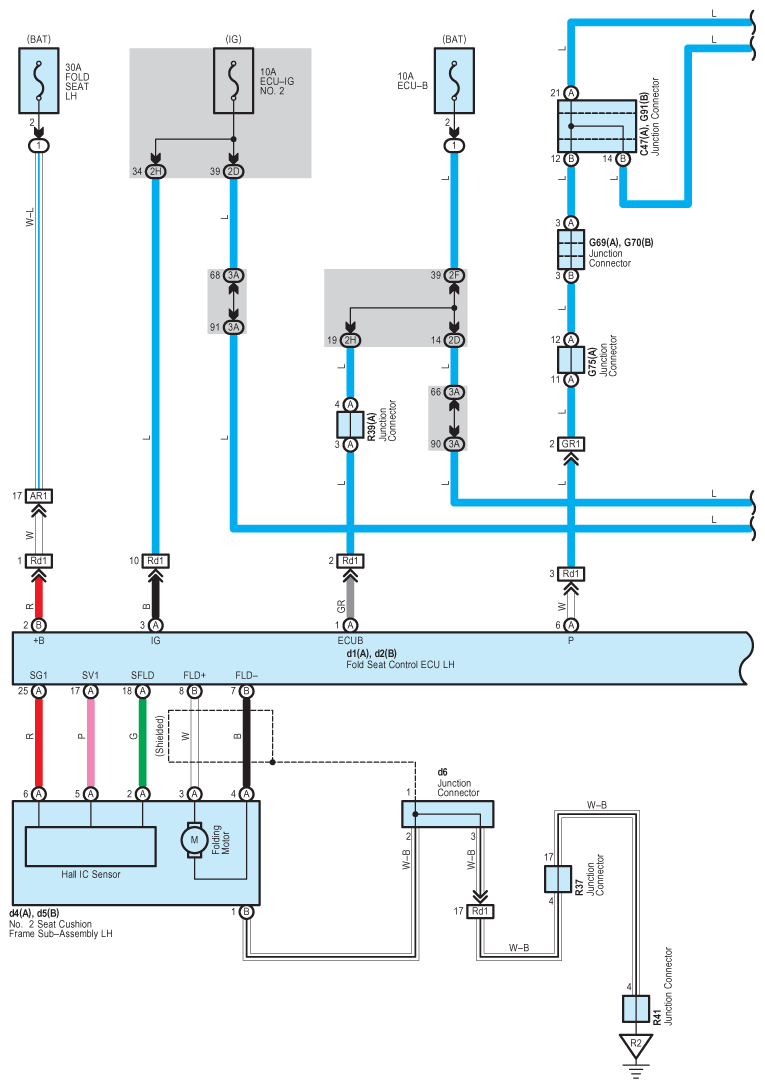

Fig 2: Power Rear No. 2 Seat With Stowing Function - Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

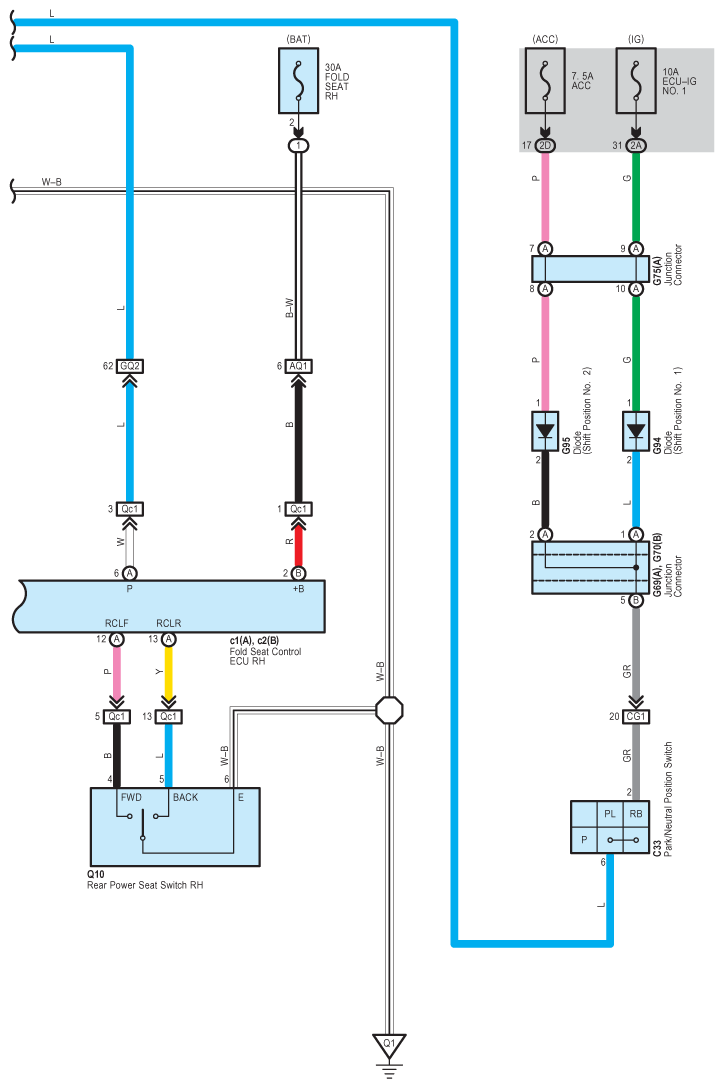

Fig 3: Power Rear No. 2 Seat With Stowing Function - Wiring Diagram (3 Of 4)

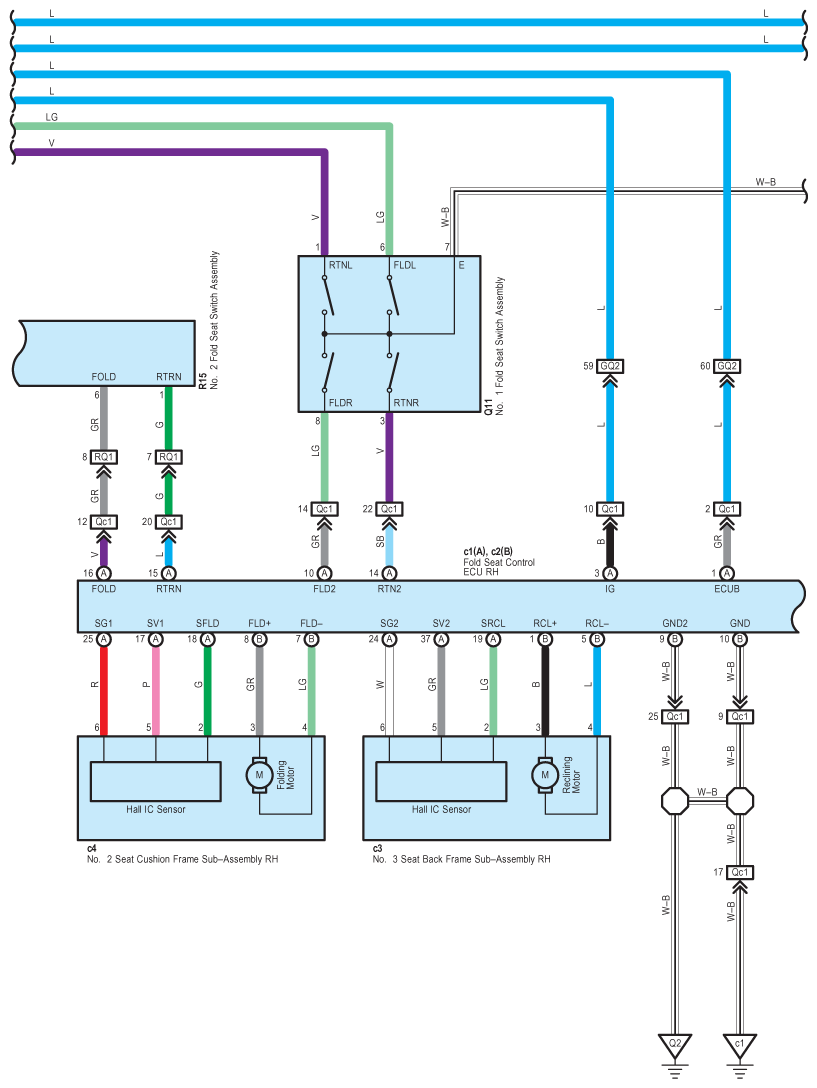

Fig 4: Power Rear No. 2 Seat With Stowing Function - Wiring Diagram (4 Of 4)
