Power Outlet (120V-100W): Notes

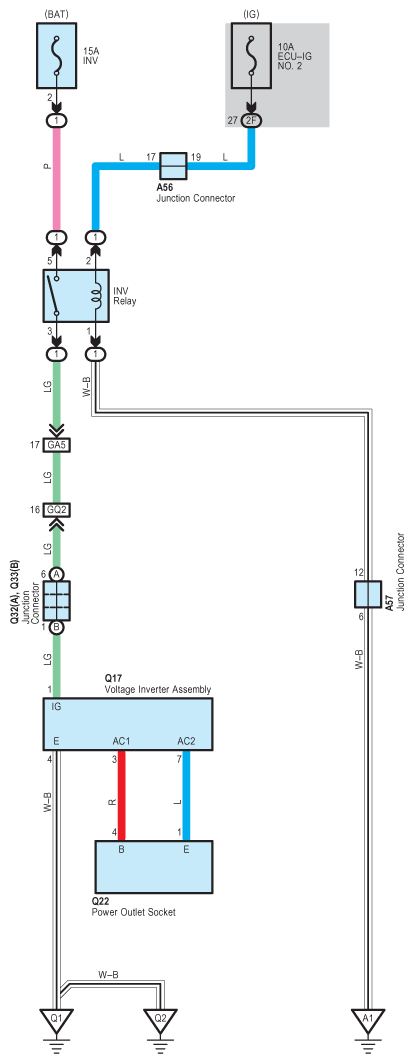

Fig 1: Power Outlet (120V-100W) - Wiring Diagram

G09114754

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
