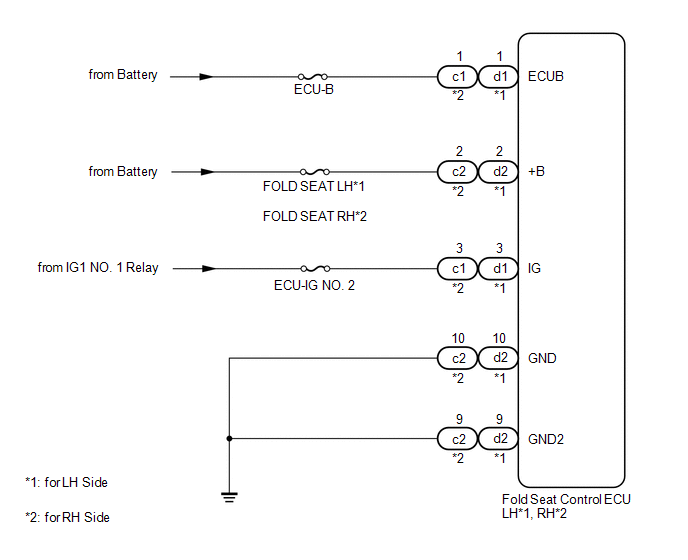

Home >> Lexus >> 2013 >> GX 460 Base >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat Control System (Diagnostics & Circuit Tests) >> Rear Power Seat Control System >> Power Source Circuit >> Wiring Diagram
