Parts Location [03/2012 - ]: Illustration

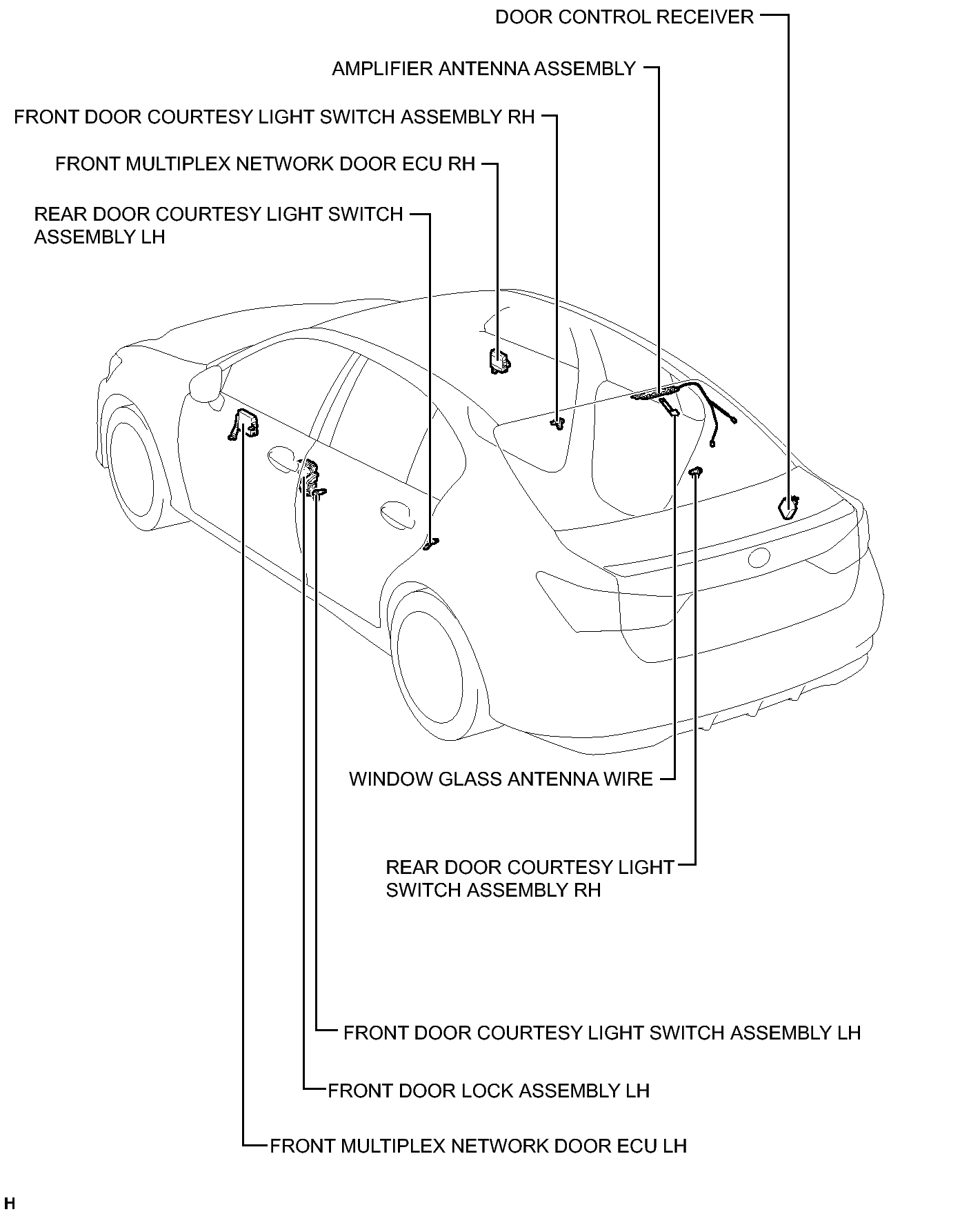

Fig 1: Power Window Control System Components Location (1 Of 3)
GTY399780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Power Window Control System Components Location (2 Of 3)
GTY395997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Power Window Control System Components Location (3 Of 3)
GTY404637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
