Components [12/2011 - ]: Illustration

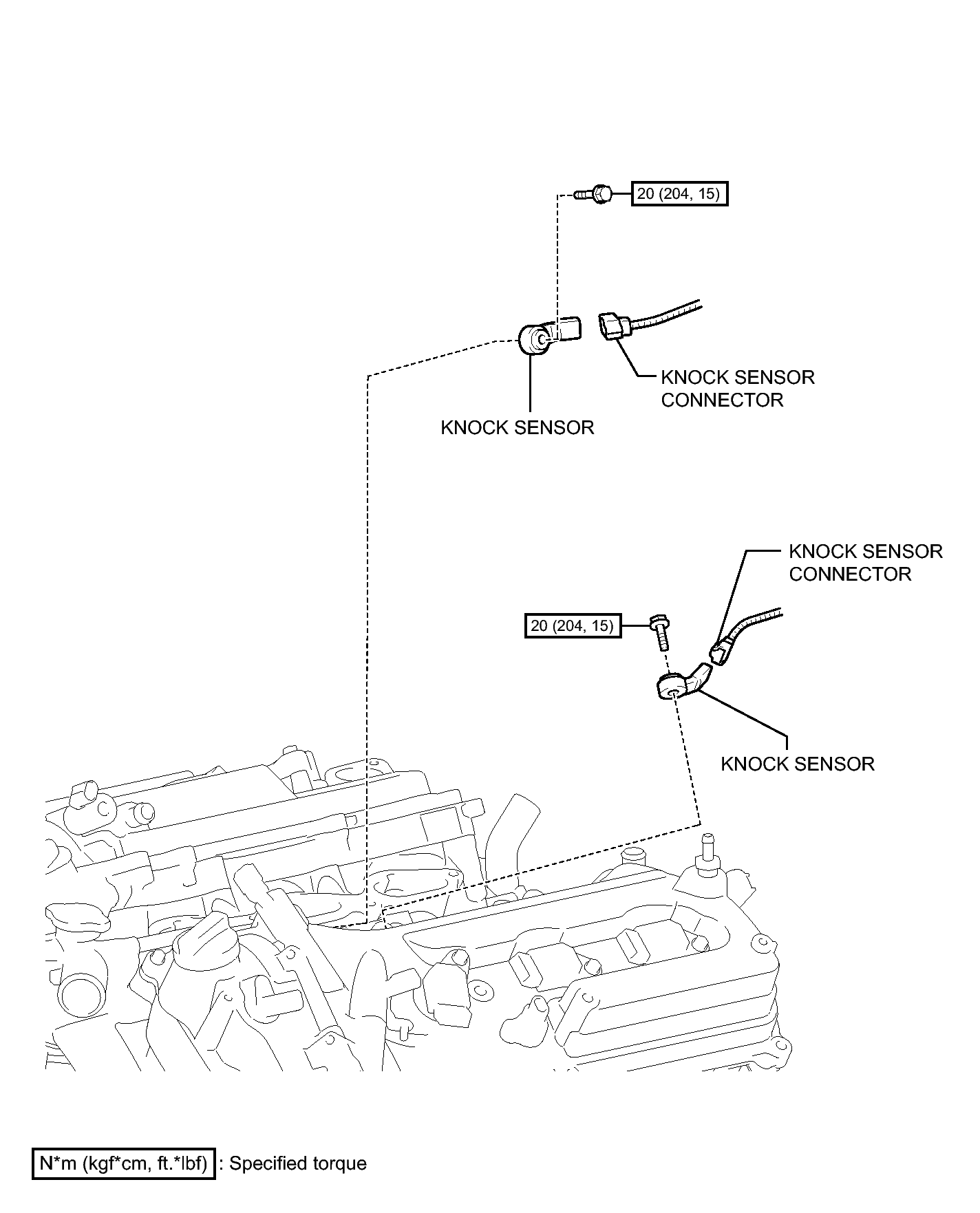

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications

GTY413978

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
