Components [06/2012 - ]: Illustration

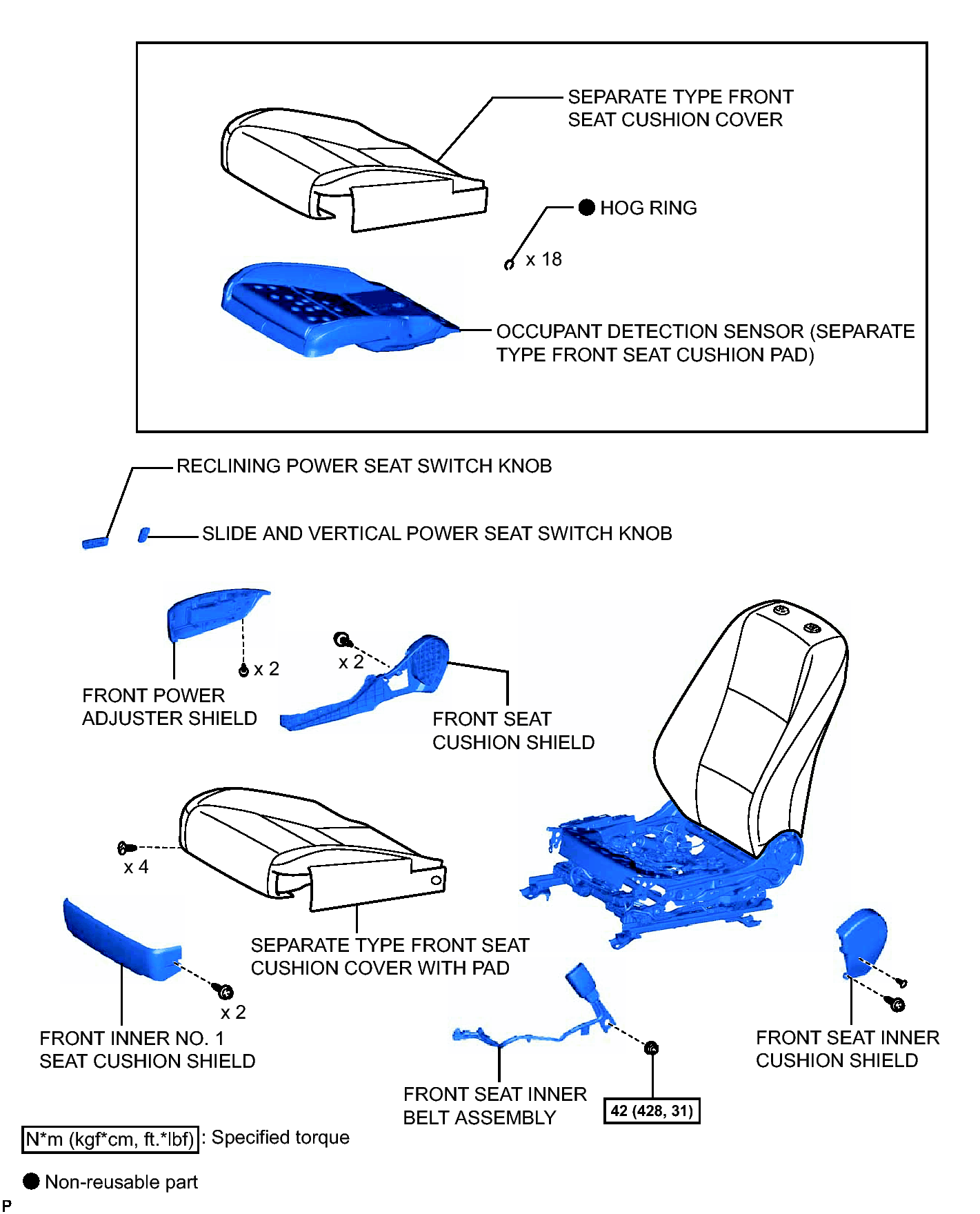

Fig 1: Identifying Occupant Detection Sensor Replacement Components With Torque Specifications

GTY414950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
