Front Speed Sensor
>>
Components [06/2012 - ]
>>
Illustration
Components [06/2012 - ]: Illustration

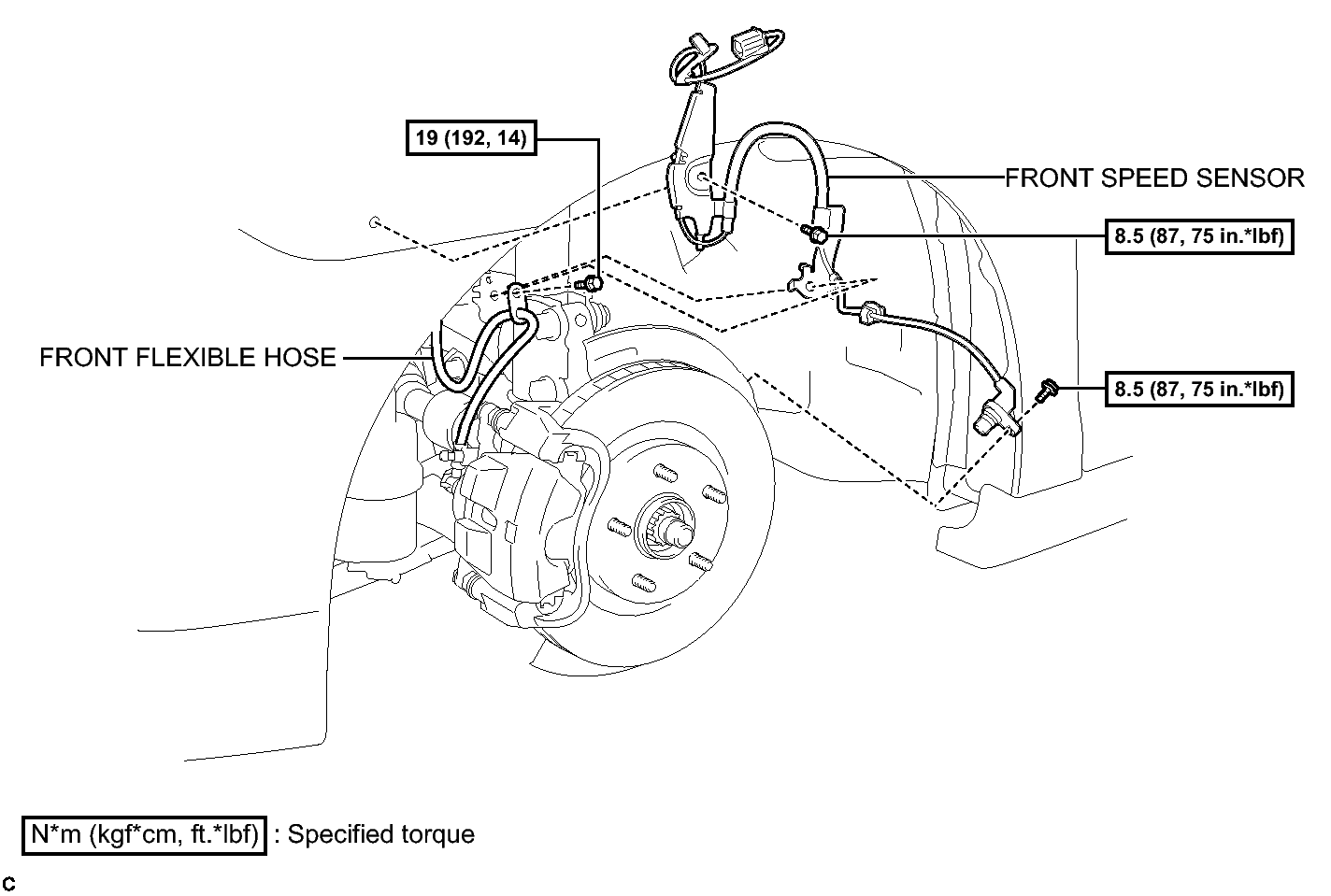

Fig 1: Identifying Front Speed Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
